AH342

Features: Digital dual complementary sink/source outputs Reverse Voltage Polarity protection for full supply range. High output current capability Low profile 4 pin SIP packageApplication Conveyors Motor control Power sensing Linear or rotary motion detection RPM sensingPinoutSpecifications ...

product image

AH342 Picture
See larger image
SeekIC No. : 004278823 Detail

AH342: Features: Digital dual complementary sink/source outputs Reverse Voltage Polarity protection for full supply range. High output current capability Low profile 4 pin SIP packageApplication Conveyors...

AH342 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AH342
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Digital dual complementary sink/source outputs
Reverse Voltage Polarity protection for full supply range.
High output current capability
Low profile 4 pin SIP package




Application

Conveyors
Motor control
Power sensing
Linear or rotary motion detection
RPM sensing




Pinout

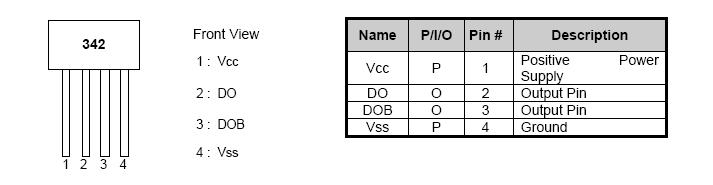

Connection Diagram




Specifications

Part Number AH342
Description Comp Output Hall Effect Latch
process Bipolar
Operating Voltage (V) 4.5 ~ 28
Output Current (Ave) 3.4mA - 7.4mA
Operating Point Bop (Gauss) 40/120
Release Point Brp (Gauss) -120/-40
Operating Ambient Temp Range (°C) -40 to +125


Characteristics
Symbol
Conditions
Values
Unit
Supply voltage
VCC
-40°C to 125°C
±28
V
Voltage Externally Applied to Output
VOUT
-40°C to 125°C
-1.2 to 5
V
Output current
Ic
±10
mA
Magnetic Flux density
B
No limit; the circuit
cannot be damaged by
magnetic overdrive
Unlimited
Operation Temperature
TOPR
-40 to 125
°C
Storage temperature range
Tstg
No power applied
-40 to150
°C





Description

The AH342 is a bipolar latching hall IC with a pair of complementary push/pull outputs. A dual hall element is used to offset stress induced noise and drift. The robust outputs are capable of sourcing up to 7.4mA and sinking up to 4.4mA. The AH342 contains inherent reverse polarity protection up to the full power supply range.
