AH291

Features: On chip Hall sensor Rotor-locked shutdown Automatically restart Built-in Zener protection for output driver Operating voltage: 1.8V~5.75 V Output current: IO(AVE) = 400 mA Package: SIP-4L, SOT23-5L, SOT89-5LPinoutSpecifications Characteristics Symbol Rating Unit Output ...

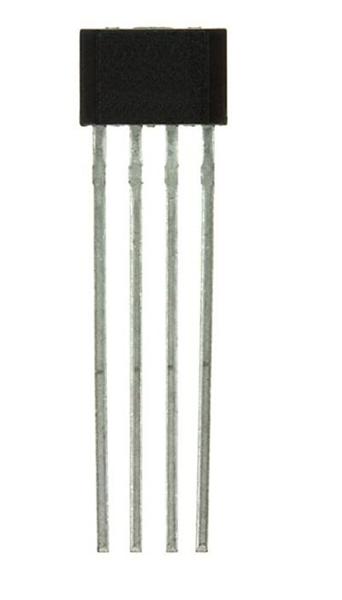

product image

AH291 Picture
See larger image
SeekIC No. : 004278812 Detail

AH291: Features: On chip Hall sensor Rotor-locked shutdown Automatically restart Built-in Zener protection for output driver Operating voltage: 1.8V~5.75 V Output current: IO(AVE) = 400 mA Package: SIP-4L...

AH291 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AH291
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

On chip Hall sensor
Rotor-locked shutdown
Automatically restart
Built-in Zener protection for output driver
Operating voltage: 1.8V~5.75 V
Output current: IO(AVE) = 400 mA
Package: SIP-4L, SOT23-5L, SOT89-5L

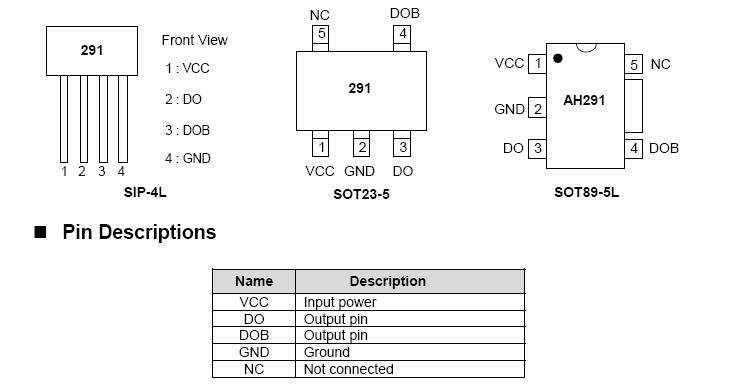

Pinout

Connection Diagram




Specifications

Characteristics
Symbol
Rating
Unit
Output Zener-breakdown Voltage
Vz
38
V
Operating Supply Voltage
Vcc
8
V
Output Current
IO(AVE)

400
mA
IO(PEAK)
700
Power Dissipation
PD
SIP4
550
mW
SOT23-5
230
SOT89-5
800
Operating temperature range
Topr
-20 ~ 100
°C
Storage temperature range
Tstg
-55 ~ 150
°C
Maximum Junction Temp.
Tj
150
°C


Part Number AH291
Output Comp.
Description Low Voltage Hall Effect Smart Fan Motor Controller
Operating Voltage (V) 1.8 to 5.75
Typical Supply Current (Ave)
Output Current (Ave) 400mA
Operating Point Bop (Gauss) 5/60
Release Point Brp (Gauss) -60/-5
Operating Ambient Temp Range (°C) -20 to +100





Description

AH291 is a monolithic fan motor controller with Hall sensor's capability. It contains two complementary open-collector drivers for motor's coil driving,automatic lock shutdown and restart function relatively.

To avoid coil burning, rotor-lock shutdown detection circuit shut down the output driver if the rotor is blocked and then the automatic recovery circuit will try to restart the motor. These protecting actions of AH291 are repeated and periodic during the blocked period.Until the blocking is removed, the motor recovers running normally.
