Product Details

Description



Features:

• Compatible with Bellcore special report SR-TSV-002476
• 3.6V ~ 6.0V supply voltage
• Call-Waiting (2130Hz plus 2750Hz) alert tone detector
• Sensitivity compensated by adjusting OP Amp
• Internal buffer
• Detection block for alert tone detected and digital algorithm detection
• Package series --- 14-pin DIP or 16-pin SOP (150 mil)
  AG8888AP for 14-pin DIP
  AG8888N for 16-pin SOP (150 mil)



Application

Feature phones, cordless phones and stand-alone product

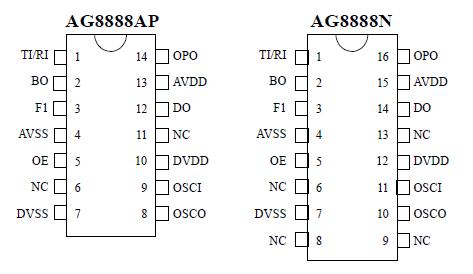

Pinout

  Connection Diagram


Description

AG8888 is a Call Waiting decoder used on the telephone. Call Waiting service works by alerting a customer engaged in a telephone call to a new incoming call. Thus, the customer can still receive important calls while engaged in a current call. The Call Waiting decoder can detect dual-tone (2130Hz and 2750Hz) alert tone and generate a valid timing on the data pins for micro controller.
