Product Details

Description



Features:

· Interfaces To Texas Instruments DRIx50 HD Radio Baseband Processors
· 12-Bit, 80MSPS ADC Reduces Noise and Improves Sensitivity
· Typical SNR of 102dB in 3kHz Bandwidth
· Programmable Input Range For Optimum Tuner Dynamic Range
· Integrated Digital Downconverter (DDC)
− Quadrature Mixer, NCO, CIC Decimation Filter, And FIR Filters
· Mixer: 32-Bit Frequency and Phase
· Decimation Ratio: 32 to 4096
· User-Programmable FIR Filters with 16-Bit Coefficients
· 12-Bit Auxiliary DAC
· Code Composer Module for Easy Software Generation
· SPI Control Interface



Application

· AM/FM and HD Radio Receivers
· IF Receive Channels
· Software Radios
· Narrowband Receivers

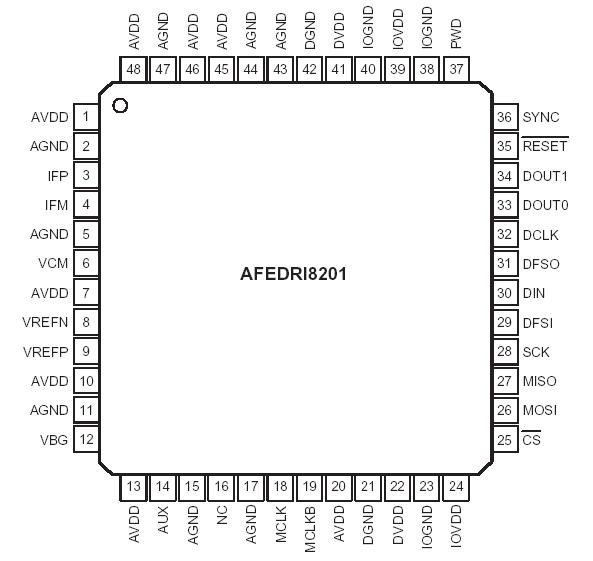

Pinout

  Connection Diagram


Specifications


AFEDRI8201
UNIT
Supply Voltage Range AVDD
−0.5 to 4.0
V
DVDD
−0.5 to 2.3
V
IOVDD
−0.5 to 3.6
V
Voltage between AGND and DGND
−0.3 to 0.5
V
Voltage between AVDD and DVDD
−3.3 to 3.3
V
Digital inputs(2)
−0.3 to DVDD + 0.3
V
Digital data output
−0.3 to DVDD + 0.3
V
Operating free-air temperature range, TA
−40 to +85
Storage temperature range
−55 to +125

(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.
(2) Measured with respect to DGND.




Description

The AFEDRI8201 implements the receive channel analog functions required for intermediate-frequency (IF) sampled AM/FM and HD digital radio receivers. It is designed to be used with TI's DRIx50 digital baseband processor. It is programmed by the DRIx50 for use in AM/FM and HD radio. The AFEDRI8201 oversamples the radio tuner IF output at speeds of up to 80MHz to reduce noise and improve dynamic range. The radio tuner output IF is typically 10.7MHz for AM or FM as well as 450kHz or 455kHz for AM, as desired. The AFEDRI8201 then mixes, filters, and decimates the signal to provide baseband I and Q output signals to the digital baseband processor.

It also includes a general-purpose 12-bit control digital-to-analog converter (DAC) to provide a gain control signal or other analog feedback to the tuner. The DRIx50 digital baseband device writes control register data as well as decimation filter coefficients to the AFEDRI8201 through the industry-standard SPI control interface.

The baseband output signals are transported to the DRIx50 through a general-purpose, high-speed serial interface (TI's Buffered Serial Ports, McBSP). This unit uses 3.3V analog and 1.8V digital power supplies. Typical power dissipation of AFEDRI8201 is 490mW. The digital I/O lines can be powered by a 3.3V supply.
