AFE1104E

Telecom Line Management ICs HDSL/MDSL Analog Front End

product image

AFE1104E Picture
SeekIC No. : 00322961 Detail

AFE1104E: Telecom Line Management ICs HDSL/MDSL Analog Front End

floor Price/Ceiling Price

Part Number:
AFE1104E
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Analog Front End Interface Type : Digital
Supply Voltage - Max : 5.25 V, 5.25 V Supply Voltage - Min : 3.15 V, 4.75 V
Maximum Operating Temperature : + 85 C Minimum Operating Temperature : - 40 C
Mounting Style : SMD/SMT Package / Case : SSOP-48
Packaging : Tube

Description

Supply Current :
Product : Analog Front End
Minimum Operating Temperature : - 40 C
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 85 C
Packaging : Tube
Interface Type : Digital
Supply Voltage - Max : 5.25 V, 5.25 V
Supply Voltage - Min : 3.15 V, 4.75 V
Package / Case : SSOP-48


Features:

` COMPLETE ANALOG INTERFACE
` T1, E1, AND MDSL OPERATION
` CLOCK SCALEABLE SPEED
` SINGLE CHIP SOLUTION
` +5V ONLY (5V OR 3.3V DIGITAL)
` 250mW POWER DISSIPATION
` 48-PIN SSOP
` 40°C TO +85°C OPERATION



Pinout

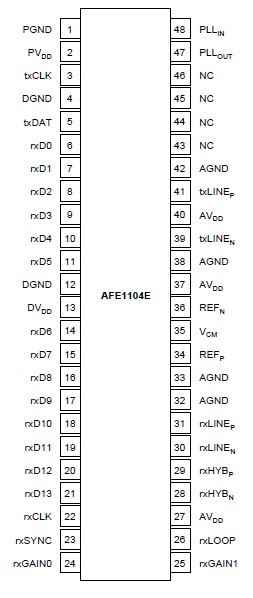

  Connection Diagram


Specifications

Analog Inputs: Current .......................................... ±100mA, Momentary
±10mA, Continuous Voltage ......................... AGND 0.3V to AVDD +0.3V
Analog Outputs Short Circuit to Ground (+25°C) .................  Continuous
AVDD to AGND ....................................................................... 0.3V to 6V
PVDD to PGND ....................................................................... 0.3V to 6V
DVDD to DGND ......................................................................  0.3V to 6V
PLLIN or PLLOUT to PGND ....................................... 0.3V to PVDD +0.3V
Digital Input Voltage to DGND ................................. 0.3V to DVDD +0.3V
Digital Output Voltage to DGND .............................. 0.3V to DVDD +0.3V
AGND, DGND, PGND Differential Voltage .........................................   0.3V
Junction Temperature (TJ) ............................................................ +150°C
Storage Temperature Range .......................................... 40°C to +125°C
Lead Temperature (soldering, 3s) ................................................. +260°C
Power Dissipation ......................................................................... 700mW



Description

Burr-Brown's Analog Front End greatly reduces the size and cost of an HDSL or MDSL system by providing all of the AFE1104 active analog circuitry needed to connect PairGain Technologies SPAROW HDSL digital signal processor to an external compromise hybrid and a 1:2 HDSL line transformer.

All internal filter responses as well as the pulse former output scale with clock frequency-allowing the AFE1104 to operate over a range of bit rates from 196kbps to 1.168Mbps. Functionally, this AFE1104  unit is separated into a transmit and a receive section. The transmit section generates, filters, and buffers outgoing 2B1Q data. The receive section filters and digitizes the symbol data received on the telephone line and passes it to the SPAROW. The HDSL Analog Interface is a monolithic device fabricated on 0.6mCMOS. It operates on a single +5V supply. It is housed in a 48-pin SSOP package.




Parameters:

Technical/Catalog InformationAFE1104E
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Package / Case48-SSOP
Voltage - Supply, Digital3.3V
Voltage - Supply, Analog5.0V
Number of Bits14
Number of Channels1
PackagingTube
Power (Watts)250mW
Drawing Number296; 4040048; DL; 28, 48, 56
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AFE1104E
AFE1104E
