AFB1224VHE, US $ 5.54-10.86, AFB1224VHE DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003439110 Detail

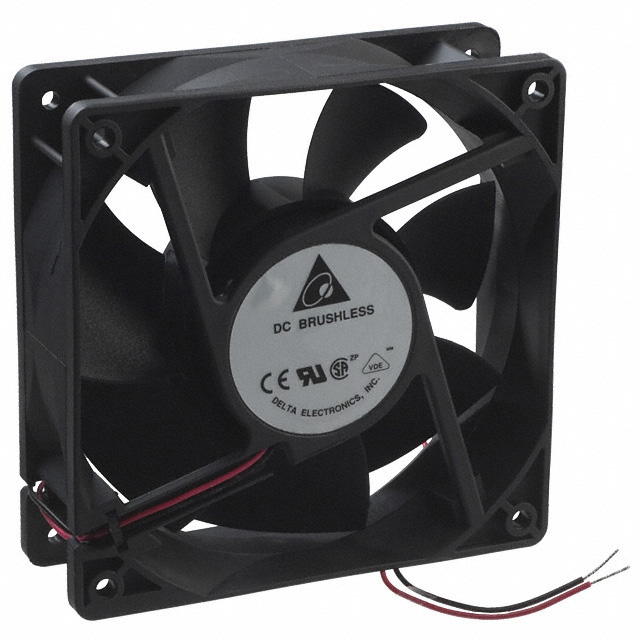

AFB1224VHE: FAN DC AXIAL 24V 120X38 3200RPM

AFB1224VHE Data Sheet

US $ 5.54~10.86 / Piece | Get Latest Price

Part Number:: AFB1224VHE
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100
100~250
250~500
500~1000

Unit Price
$10.86
$9.93
$8.32
$7.62
$6.7
$6.24
$5.78
$5.54

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AFB1212HH evaluate
US $4.75 - 9.31 / Piece

FAN DC AXIAL 12V 120X25.4 2800
AFB1212HHE evaluate
US $5.33 - 10.43 / Piece

12V DC FAN 120X120X38 MM
AFB1212HHE-F00 evaluate
US $5.51 - 10.79 / Piece

12V DC FAN 120X120X38 MM

Product Details

Quick Details

Series:	AFB	Manufacturer:	Delta Product Groups
Fan Type:	Tubeaxial	Size / Dimension:	Square - 120mm L x 120mm H x 38mm W
Voltage - Rated:	24VDC	Power (Watts):	9.12W
Features:	-	RPM:	3200 RPM
Noise:	48 dB(A)	Package / Case :	SOT-393
Static Pressure:	0.420 in H2O (104.6 Pa)	Air Flow:	129.9 CFM (3.68m³/min)
Termination:	2 Wire Leads	Bearing Type:	Ball

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Operating Temperature: -
Bearing Type: Ball
RPM: 3200 RPM
Voltage - Rated: 24VDC
Size / Dimension: Square - 120mm L x 120mm H x 38mm W
Noise: 48 dB(A)
Power (Watts): 9.12W
Air Flow: 129.9 CFM (3.68m³/min)
Manufacturer: Delta Product Groups
Series: AFB
Static Pressure: 0.420 in H2O (104.6 Pa)

Parameters:

Technical/Catalog Information	AFB1224VHE
Vendor	Delta Product Groups
Category	Fans
Voltage - Rated	24VDC
Power (Watts)	9.12W
Bearing Type	Ball
Size / Dimension	Square - 120mm L x 120mm H x 38mm W
Air Flow	129.9 CFM
Features	-
Termination	2 Wire Leads
Fan Type	Tubeaxial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AFB1224VHE AFB1224VHE 603 1086 ND 6031086ND 603-1086
