AFB0812SH-F00

FAN DC AXIAL 12V 80X25.4 TAC OUT

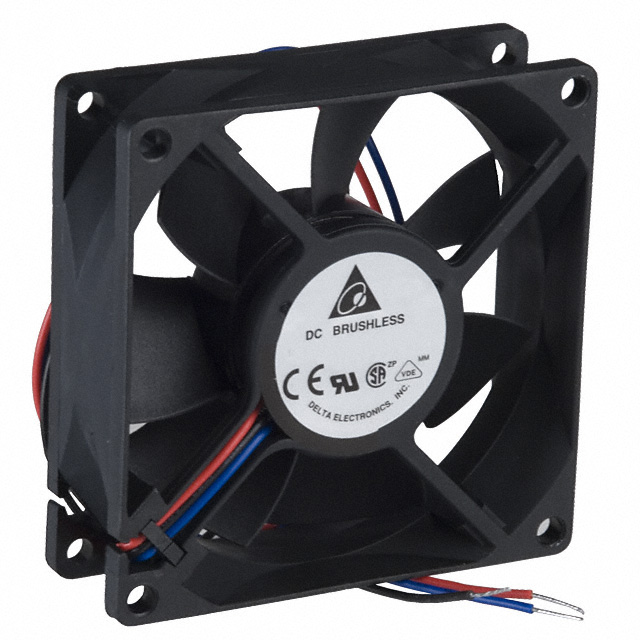

product image

AFB0812SH-F00 Picture
SeekIC No. : 003439096 Detail

AFB0812SH-F00: FAN DC AXIAL 12V 80X25.4 TAC OUT

floor Price/Ceiling Price

US $ 3.96~7.76 / Piece | Get Latest Price
Part Number:
AFB0812SH-F00
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • Unit Price
  • $7.76
  • $7.1
  • $5.94
  • $5.45
  • $4.79
  • $4.46
  • $4.13
  • $3.96
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: AFB Manufacturer: Delta Product Groups
Fan Type: Tubeaxial Size / Dimension: Square - 80mm L x 80mm H x 25.4mm W
Voltage - Rated: 12VDC Power (Watts): 4.08W
Features: Speed Sensor (Tach) RPM: 4000 RPM
Noise: 40 dB(A) Static Pressure: 0.267 in H2O (66.5 Pa)
Package / Case : SOT-393 Air Flow: 46.6 CFM (1.32m³/min)
Termination: 3 Wire Leads Bearing Type: Ball

Description

Fan Type: Tubeaxial
Voltage - Rated: 12VDC
Operating Temperature: -
Bearing Type: Ball
Features: Speed Sensor (Tach)
Termination: 3 Wire Leads
RPM: 4000 RPM
Power (Watts): 4.08W
Size / Dimension: Square - 80mm L x 80mm H x 25.4mm W
Manufacturer: Delta Product Groups
Air Flow: 46.6 CFM (1.32m³/min)
Series: AFB
Noise: 40 dB(A)
Static Pressure: 0.267 in H2O (66.5 Pa)


Parameters:

Technical/Catalog InformationAFB0812SH-F00
VendorDelta Product Groups
CategoryFans, Thermal Management
Voltage - Rated 12VDC
Power (Watts)4.08W
Bearing TypeBall
Size / DimensionSquare - 80mm L x 80mm H x 25.4mm W
Air Flow46.6 CFM
FeaturesSpeed Sensor (Tach)
Termination3 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AFB0812SH F00
AFB0812SHF00
603 1054 ND
6031054ND
603-1054
