AFB0612L-A

FAN DC AXIAL 12V 60X25.4 3100RPM

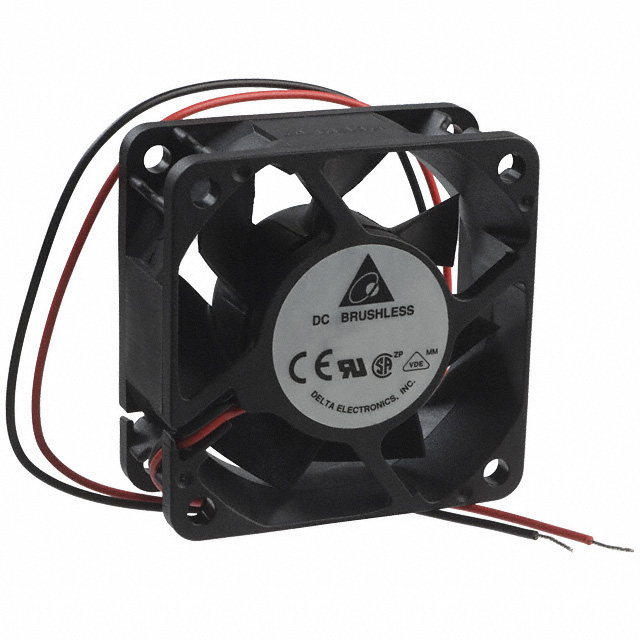

product image

AFB0612L-A Picture
SeekIC No. : 003439328 Detail

AFB0612L-A: FAN DC AXIAL 12V 60X25.4 3100RPM

floor Price/Ceiling Price

US $ 4.21~8.25 / Piece | Get Latest Price
Part Number:
AFB0612L-A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • Unit Price
  • $8.25
  • $7.55
  • $6.32
  • $5.79
  • $5.09
  • $4.74
  • $4.39
  • $4.21
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: AFB Manufacturer: Delta Product Groups
Fan Type: Tubeaxial Size / Dimension: Square - 60mm L x 60mm H x 25.4mm W
Voltage - Rated: 12VDC Power (Watts): 0.96W
Features: - RPM: 3100 RPM
Noise: 26.5 dB(A) Package / Case : SOT-393
Static Pressure: 0.113 in H2O (28.1 Pa) Air Flow: 16.8 CFM (0.476m³/min)
Termination: 2 Wire Leads Bearing Type: Ball

Description

Fan Type: Tubeaxial
Voltage - Rated: 12VDC
Features: -
Termination: 2 Wire Leads
Operating Temperature: -
Power (Watts): 0.96W
Bearing Type: Ball
Static Pressure: 0.113 in H2O (28.1 Pa)
Noise: 26.5 dB(A)
RPM: 3100 RPM
Size / Dimension: Square - 60mm L x 60mm H x 25.4mm W
Manufacturer: Delta Product Groups
Series: AFB
Air Flow: 16.8 CFM (0.476m³/min)


Parameters:

Technical/Catalog InformationAFB0612L-A
VendorDelta Product Groups
CategoryFans, Thermal Management
Voltage - Rated 12VDC
Power (Watts)0.96W
Bearing TypeBall
Size / DimensionSquare - 60mm L x 60mm H x 25.4mm W
Air Flow16.8 CFM
Features-
Termination2 Wire Leads
Fan TypeTubeaxial
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AFB0612L A
AFB0612LA
603 1030 ND
6031030ND
603-1030
