Product Details

Description



Features:

- Low On-resistance
- Capable of 2.5V Gate Drive
- Optimal DC/DC battery application

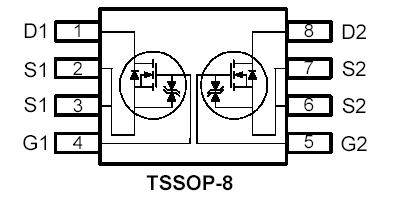

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Units
VDS Drain-Source Voltage 20 V
VGS Gate-Source Voltage ±12 V
ID Continuous Drain Current (Note 1) TA=25ºC 5 A
TA=70ºC 3.5
IDM Pulsed Drain Current (Note 2) 25 A
PD Total Power Dissipation TA=25ºC 1 W
Linear Derating Factor 0.008
TJ Storage Temperature Range -55 to 150 ºC
TSTG Operating Junction Temperature Range -55 to 150 ºC



Description

The AF9928N advanced power MOSFET provides the designer with the best combination of fast switching, ruggedized device design, ultra low on-resistance and cost-effectiveness.
