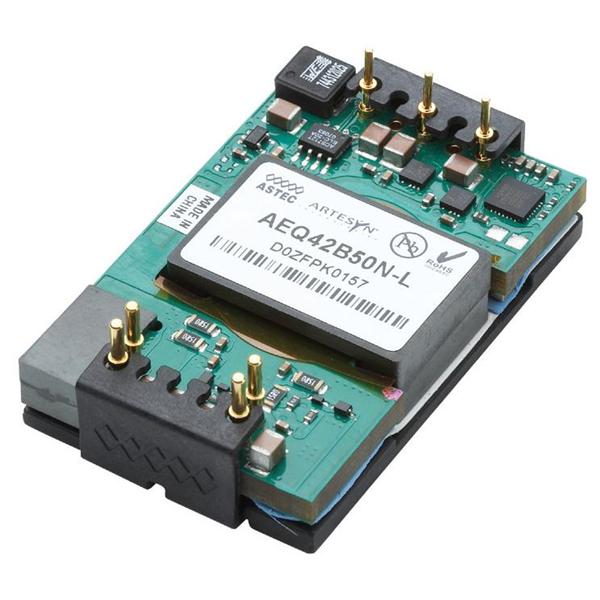

AEQ75Y48

Output Voltage (Channel 2) :
Output Current (Channel 2) :
Mounting Style :
Number of Outputs : 1
Output Voltage (Channel 1) : 1.8 V
Product : Isolated
Input Voltage (nominal) : 48 V
Input Voltage Range : 36 V to 75 V
Package / Case Size : Quarter Brick
Output Power : 135 W
Output Current (Channel 1) : 75 A


Features:

·  Industry Standard ¼ Brick Footprint
·  Redundant output power pins (with single pair option)
·  Positive and Negative Enable Options
·  Regulation to Zero Load
·  High Capacitive Load Start-up
·  Output Trim
·  Input Under-Voltage Lockout
·  Low profile


Specifications

Parameter	Device	Symbol	Min	Typ	Max	Unit
Input Voltage1 Continuous Transient (100ms)	All All	VIN VI N, trans	0 0	-	75 100	Vdc Vdc
Isolation Voltage Input to Output Input to Baseplate Output to Baseplate	All		1500	-	-	Vdc
Operating Ambient Temperature	All	TA	-40	-	105
Storage Temperature	All	TSTG	-55	-	125
Operating Humidity	All	-	10	-	85	%
Maximum Enable Voltage	All			-	25	Vdc
Max Output Power	All	PO	-	-	135	W

Description

The AEQ75Y48 series is the latest addition to Astec's quarter brick size offerings. At 1.8V, it delivers 75A maximum output current at 89% Efficiency. It provides tight regulation and exhibits clean and monotonic output start up characteristics. The new modules come with industry standard features such as Input UVLO, OCP, OVP, OTP, Output Trim, differential output Sense pins. AEQ75Y48 also comes standard with 2 pairs of output power pins (add suffix "-3" for single pair output pin option) and offers baseplate construction for optimum user flexibility.
