AE2596

The AE2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down(buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. The AE2596 is available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.

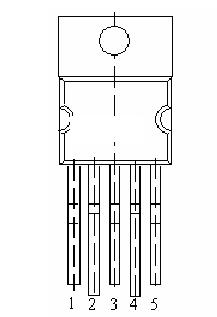

Requiring a minimum number of external components, these AE2596 regulators are simple to use and include internal frequency compensation, and a fixed frequency oscillator. The AE2596 series operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-lead TO-220 package with several different lead bend options, and a 5-lead TO-263 surface mount package.

Other features of AE2596 include a guaranteed±4% tolerance on output voltage under specified input voltage and output load conditions, and±15% on the oscillator frequency. External shutdown is included, featuring typically 80µA standby current. Self-protection features include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions.
