ADXL278

·Complete dual-axis acceleration measurement system on a single monolithic IC
·Available in ±35 g/±35 g, ±50 g/±50 g, or ±70 g/±35 g output full-scale ranges
·Full differential sensor and circuitry for high resistance to EMI/RFI
·Environmentally robust packaging
·Complete mechanical and electrical self-test on digital command
·Output ratiometric to supply
·Sensitive axes in the plane of the chip
·High linearity (0.2% of full scale)
·Frequency response down to dc
·Low noise
·Low power consumption
·Tight sensitivity tolerance and 0 g offset capability
·Largest available prefilter clipping headroom
·400 Hz, 2-pole Bessel filter
·Single-supply operation
·Compatible with Sn/Pb and Pb-free solder processes

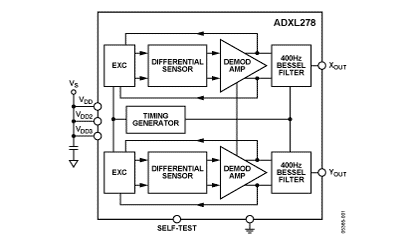

The ADXL278 is a low power, complete, dual-axis accelerometer with signal conditioned voltage outputs that are on a single monolithic IC. This product measures acceleration with a full-scale range of (X-axis/Y-axis) ±35 g/±35 g, ±50 g/ ±50 g, or ±70 g/±35 g (minimum). The ADXL278 can also measure both dynamic acceleration (vibration) and static acceleration (gravity).

The ADXL278 is the fourth-generation surface micromachined iMEMS® accelerometer from ADI with enhanced performance and lower cost. Designed for use in front and side impact airbag applications, this product also provides a complete cost-effective solution useful for a wide variety of other applications.

The ADXL278 is temperature stable and accurate over the automotive temperature range, with a self-test feature that fully exercises all the mechanical and electrical elements of the sensor with a digital signal applied to a single pin.

The ADXL278 is available in a 5 mm × 5 mm × 2 mm, 8-terminal ceramic LCC package.
