Product Details

Description



Features:

·High Definition Input Formats
·8-/10-,16-/20-, 24-/30-Bit (4:2:2, 4:4:4) Parallel YCrCb
·Compliant with:
·SMPTE 293M (525p)
·BTA T-1004 EDTV2 525p
·ITU-R BT.1358 (625p/525p)
·ITU-R BT.1362 (625p/525p)
·SMPTE 274M (1080i) at 30 Hz and 25 Hz
·SMPTE 296M (720p)
·RGB in 3  10-Bit 4:4:4 Input Format
·HDTV RGB Supported:
·RGB and RGBHV
·Other High Definition Formats Using Async
·Timing Mode
·High Definition Output Formats
·YPrPb Progressive Scan (EIA-770.1, EIA-770.2)
·YPrPb HDTV (EIA 770.3)
·RGB, RGBHV
·CGMS-A (720p/1080i)
·Macrovision Rev 1.1 (525p/625p)
·CGMS-A (525p)
·Standard Definition Input Formats
·CCIR-656 4:2:2 8-/10-/16-/20-Bit Parallel Input
·Standard Definition Output Formats
·Composite NTSC M/N
·Composite PAL M/N/B/D/G/H/I, PAL-60
·SMPTE 170M NTSC Compatible Composite Video
·ITU-R BT.470 PAL Compatible Composite Video
·S-Video (Y/C)
·EuroScart RGB
·Component YPrPb (Betacam, MII, SMPTE/EBU N10)
·Macrovision Rev 7.1.L1
·CGMS/WSS
·Closed Captioning


Application

·High End DVD
·High End PS DVD Recorders/Players
·SD/Prog Scan/HDTV Display Devices
·SD/HDTV Set Top Boxes
·Professional Video Systems

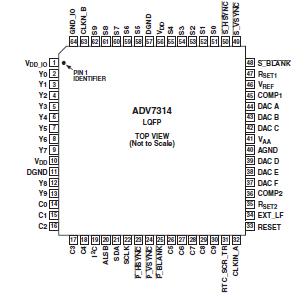

Pinout

Connection Diagram


Specifications

VAA to AGND . . . . . . . . . . . . . . . . . . . . . . . .     +3.0 V to 0.3 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . .    +3.0 V to 0.3 V
VDD_IO to IO_GND . . . . . . . . . . . . 0.3 V to VDD_IO to +0.3 V
Ambient Operating Temperature (TA) . . . . . . . . . 0C to 70C
Storage Temperature (TS) . . . . . . . . . . . . .  65C to +150C
Infrared Reflow Soldering (20 secs) . . . . . . . . . . . . . . .  260C


Description

The ADV7314 is a high speed, digital-to-analog encoder on a single monolithic chip. It includes six high speed NSV video D/A converters with TTL compatible inputs.

The ADV7314 has separate 8-/10-/16-/20-bit input ports that accept data in high definition and/or standard definition video format. For all standards, external horizontal, vertical and blanking signals, or EAV/SAV timing codes control the insertion of appropriate synchronization signals into the digital data stream and therefore the output signal.
