ADV7310

Features: ·High Definition Input Formats·8-/10-, 16-/20-, 24-/30-Bit (4:2:2, 4:4:4) Parallel YCrCb·Compliant with:·SMPTE 293M (525p)·BTA T-1004 EDTV2 (525p)·ITU-R BT.1358 (625p/525p)·ITU-R BT.1362 (625p/525p)·SMPTE 274M (1080i) at 30 Hz and 25 Hz·SMPTE 296M (720p)·RGB in 310-Bit 4:4:4 Input Forma...

product image

ADV7310 Picture
See larger image
SeekIC No. : 004278217 Detail

ADV7310: Features: ·High Definition Input Formats·8-/10-, 16-/20-, 24-/30-Bit (4:2:2, 4:4:4) Parallel YCrCb·Compliant with:·SMPTE 293M (525p)·BTA T-1004 EDTV2 (525p)·ITU-R BT.1358 (625p/525p)·ITU-R BT.1362 (...

ADV7310 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADV7310
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·High Definition Input Formats
·8-/10-, 16-/20-, 24-/30-Bit (4:2:2, 4:4:4) Parallel YCrCb
·Compliant with:
·SMPTE 293M (525p)
·BTA T-1004 EDTV2 (525p)
·ITU-R BT.1358 (625p/525p)
·ITU-R BT.1362 (625p/525p)
·SMPTE 274M (1080i) at 30 Hz and 25 Hz
·SMPTE 296M (720p)
·RGB in 310-Bit 4:4:4 Input Format
·HDTV RGB Supported:
·RGB, RGBHV
·Other High Definition Formats Using Async
·Timing Mode
·High Definition Output Formats
·YPrPb Progressive Scan (EIA-770.1, EIA-770.2)
·YPrPb HDTV (EIA 770.3)
·RGB, RGBHV
·CGMS-A (720p/1080i)
·Macrovision Rev 1.1 (525p/625p)*
·CGMS-A (525p)
·Standard Definition Input Formats
·CCIR-656 4:2:2 8-/10-/16-/20-Bit Parallel Input
·Standard Definition Output Formats
·Composite NTSC M/N
·Composite PAL M/N/B/D/G/H/I, PAL-60
·SMPTE 170M NTSC Compatible Composite Video
·ITU-R BT.470 PAL Compatible Composite Video
·S-Video (Y/C)
·EuroScart RGB
·Component YPrPb (Betacam, MII, SMPTE/EBU N10)
·Macrovision Rev 7.1.L1*
·CGMS/WSS
·Closed Captioning


Pinout

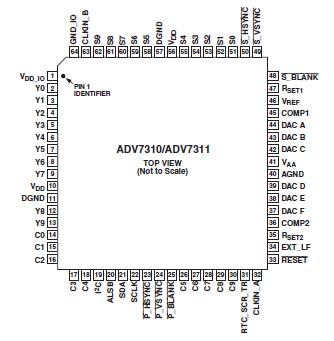

Connection Diagram


Specifications

VAA to AGND . . . . . . . . . . . . . . . . . . . . . . . .   +3.0 V to 0.3 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . .  +3.0 V to 0.3 V
VDD_IO to IO_GND . . . . . . . . . . . 0.3 V to VDD_IO to +0.3 V
Ambient Operating Temperature (TA) . . . . . . . . . 0°C to 70°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Infrared Reflow Soldering (20 sec) . . . . . . . . . . . . . . . . 260°C


Description

The ADV®7310/ADV7311 is a high speed, digital-to-analog encoder on a single monolithic chip. It includes six high speed NSV video D/A converters with TTL compatible inputs.

The ADV7310/ADV7311 has separate 8-/10-/16-/20-bit input ports that accept data in high definition and/or standard definition video format. For all standards, external horizontal, vertical, and blanking signals or EAV/SAV timing codes control the insertion of appropriate synchronization signals into the digital data stream and therefore the output signal.
