ADV7302A

Features: ·High Definition Input Formats·YCrCb Compliant to SMPTE293M (525 p),·ITU-R.BT1358 (625 p), SMPTE274M (1080 i),·SMPTE296M (720 p), and Any Other High Definition·Standard Using Async Timing Mode·RGB in 3  8-Bit 4:4:4 Format·BTA T-1004 EDTV2 525 p Parallel·High Definition Output Formats (5...

product image

ADV7302A Picture
See larger image
SeekIC No. : 004278211 Detail

ADV7302A: Features: ·High Definition Input Formats·YCrCb Compliant to SMPTE293M (525 p),·ITU-R.BT1358 (625 p), SMPTE274M (1080 i),·SMPTE296M (720 p), and Any Other High Definition·Standard Using Async Timing ...

ADV7302A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADV7302A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·High Definition Input Formats
·YCrCb Compliant to SMPTE293M (525 p),
·ITU-R.BT1358 (625 p), SMPTE274M (1080 i),
·SMPTE296M (720 p), and Any Other High Definition
·Standard Using Async Timing Mode
·RGB in 3  8-Bit 4:4:4 Format
·BTA T-1004 EDTV2 525 p Parallel
·High Definition Output Formats (525 p/625 p/720 p/1080 i)
·YPrPb Progressive Scan (EIA-770.1, EIA-770.2)
·YPrPb HDTV (EIA 770.3)
·RGB + H/V (HDTV 5-Wire Format)
·CGMS-A (720 p/1080 i)
·Macrovision Rev 1.0 (525 p/625 p)*
·CGMS-A (525 p)
·Standard Definition Input Formats
·CCIR-656 4:2:2 8-Bit Parallel Input
·CCIR-601 4:2:2 16-Bit Parallel Input
·Standard Definition Output Formats
·Composite NTSC M, N;
·PAL M, N, B, D, G, H, I, PAL-60
·SMPTE170M NTSC Compatible Composite Video
·ITU-R.BT470 PAL Compatible Composite Video
·S-Video (Y/C)
·EuroScart RGB
·Component YUV (Betacam, MII, SMPTE/EBU N10)
·Macrovision Rev 7.1*
·CGMS/WSS
·Closed Captioning


Application

·DVD Players
·SD/HD Display Devices
·SD/HD Set-Top Boxes
·SD/HDTV Studio Equipment


Pinout

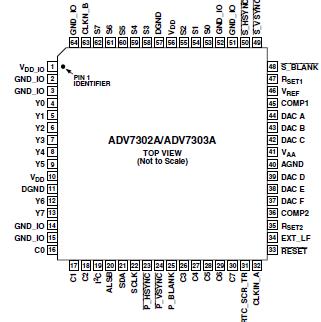

Connection Diagram


Specifications

VAA to AGND . . . . . . . . . . . . . . . . . . . . . . . .     +3.0 V to 0.3 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . .    +3.0 V to 0.3 V
VDD_IO to IO_GND . . . . . . . . . . . . .  0.3 V to VDD_IO + 0.3 V
Ambient Operating Temperature (TA) . . . . . . .    0°C to +70°C
Storage Temperature (TS) . . . . . . . . . . . . . . 65°C to +150°C
Infrared Reflow Soldering (20 sec) . . . . . . . . . . . . . . . . 260°C


Description

The ADV7302A/ADV7303A is a high speed, digital-to-analog encoder on a single monolithic chip. It includes six high speed video D/A converters with TTL compatible inputs.

The ADV7302A/ADV7303A has three separate 8-bit wide input ports that accept data in high definition and/or standard definition video format. For all standards, external horizontal, vertical, and blanking signals, or EAV/SAV timing codes, control the insertion of appropriate synchronization signals into the digital data stream and therefore the output signals.
