ADV7192

Features: ·Six High-Quality 10-Bit Video DACs·10-Bit Internal Digital Video Processing·Multistandard Video Input·Multistandard Video Output·4 Oversampling with Internal 54 MHz PLL·Programmable Video Control Includes:·Digital Noise Reduction·Gamma Correction·Black Burst·LUMA Delay·CHROMA Delay·Mul...

product image

ADV7192 Picture
See larger image
SeekIC No. : 004278197 Detail

ADV7192: Features: ·Six High-Quality 10-Bit Video DACs·10-Bit Internal Digital Video Processing·Multistandard Video Input·Multistandard Video Output·4 Oversampling with Internal 54 MHz PLL·Programmable Vide...

ADV7192 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADV7192
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Six High-Quality 10-Bit Video DACs
·10-Bit Internal Digital Video Processing
·Multistandard Video Input
·Multistandard Video Output
·4 Oversampling with Internal 54 MHz PLL
·Programmable Video Control Includes:
·Digital Noise Reduction
·Gamma Correction
·Black Burst
·LUMA Delay
·CHROMA Delay
·Multiple Luma and Chroma Filters
·Luma SSAF™ (Super Subalias Filter)
·Average Brightness Detection
·Field Counter
·Macrovision Rev. 7.1
·CGMS (Copy Generation Management System)
·WSS (Wide Screen Signaling)
·Closed Captioning Support.
·Teletext Insertion Port (PAL-WST)
·2-Wire Serial MPU Interface (I2C®-Compatible and Fast I2C)
·I2C Interface
·Supply Voltage 5 V and 3.3 V Operation 80-Lead LQFP Package


Pinout

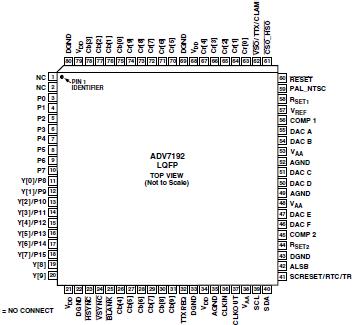

Connection Diagram


Specifications

VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .      7 V
Voltage on any Digital Input Pin . .   GND 0.5 V to VAA + 0.5 V
Storage Temperature (TS) . . . . . . . . . . . . . .  65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . . .    150°C
Body Temperature (Soldering, 10 secs) . . . . . . . . . . . . . 220°C
Analog Outputs to GND2 . . . . . . . . . . . .      GND 0.5 V to VAA


Description

The ADV7192 is part of the new generation of video encoders from Analog Devices. The device builds on the performance of previous video encoders and provides new features like interfacing progressive scan devices, Digital Noise Reduction, Gamma Correction, 4* Oversampling and 54 MHz operation, Average Brightness Detection, Black Burst Signal Generation, Chroma Delay, an additional Chroma Filter, and other features.

The ADV7192 supports NTSC-M, NTSC-N (Japan), PAL N, PAL M, PAL-B/D/G/H/I and PAL-60 standards. Input standards supported include ITU-R.BT656 4:2:2 YCrCb in 8-Bit or 16-Bit format and 3* 10-Bit YCrCb progressive scan format.

The ADV7192 can output Composite Video (CVBS), S-Video (Y/C), Component YUV or RGB and analog progressive scan in YPrPb format. The analog component output is also compatible with Betacam, MII, and SMPTE/EBU N10 levels, SMPTE 170 M NTSC, and ITUR.BT 470 PAL.

Please see Detailed Description of Features for more information about the ADV7192.
