Description



Features:

·Six High-Quality 10-Bit Video DACs
·Multistandard Video Input
·Multistandard Video Output
·4 Oversampling with Internal 54 MHz PLL
·Programmable Video Control Includes:
·Digital Noise Reduction
·Gamma Correction
·LUMA Delay
·CHROMA Delay
·Multiple Luma and Chroma Filters
·Luma SSAF™ (Super Subalias Filter)
·Average Brightness Detection
·Field Counter
·Macrovision Rev 7.1
·CGMS (Copy Generation Management System)
·WSS (Wide Screen Signaling)
·Closed Captioning Support
·Teletext Insertion Port (PAL-WST)
·2-Wire Serial MPU Interface
·Supply Voltage 5 V and 3.3 V Operation
·64-Lead LQFP Package


Pinout

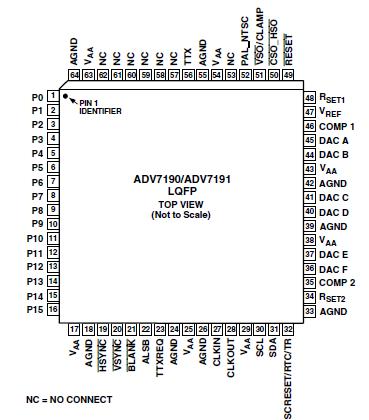

Connection Diagram


Specifications

VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    7 V
Voltage on Any Digital Input Pin . . GND 0.5 V to VAA + 0.5 V
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . .    150°C
Body Temperature (Soldering, 10 secs) . . . . . . . . . . . . 220°C
Analog Outputs to GND2 . . . . . . . . . . . .       GND 0.5 to VAA


Description

The ADV7190/ADV7191 is part of the new generation of video encoders from Analog Devices. The device builds on the performance of previous video encoders and provides new features such as, Digital Noise Reduction, Gamma Correction, 4* Oversampling and 54 MHz operation, Average Brightness Detection, Chroma Delay, an additional Chroma Filter, etc.

The ADV7190/ADV7191 supports NTSC-M, NTSC-N (Japan), PAL N, PAL M, PAL-B/D/G/H/I and PAL-60 standards. Input standards supported include ITU-R.BT656/601 4:2:2 YCrCb in 8- or 16-bit format.

The ADV7190/ADV7191 can output Composite Video (CVBS), S-Video (Y/C), Component YUV** or RGB. The analog component output is also compatible with Betacam, MII and SMPTE/EBU N10 levels, SMPTE 170M NTSC and ITU-R.BT 470 PAL.

For more information about the ADV7190/ADV7191's features refer to Detailed Description.
