Features:

`220 MHz, 24-Bit (30-Bit Gamma Corrected) True Color
`Triple 10-Bit "Gamma Correcting" D/A Converters
`Triple 256 3 10 (256 3 30) Color Palette RAM
`On-Chip Clock Control Circuit
`Palette Priority Select Registers
`RS-343A/RS-170 Compatible Analog Outputs
`TTL Compatible Digital Inputs
`Standard MPU l/O Interface
`10-Bit Parallel Structure
`8+2 Byte Structure
`Programmable Pixel Port: 24-Bit, 15-Bit and
`Programmable Pixel Port: 8-Bit (Pseudo)


Application

·High Resolution, True Color Graphics
·Professional Color Prepress Imaging


Pinout

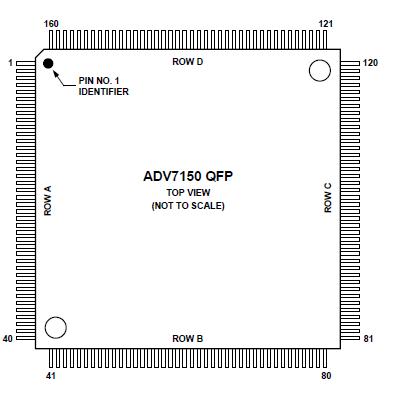

Connection Diagram


Specifications

VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . 7 V
Voltage on Any Digital Pin . . . . . .  GND 0.5 V to VAA + 0.5 V
Ambient Operating Temperature (TA) . . . . . 55°C to +125°C
Storage Temperature (TS) . . . . . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . . .  +150°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . . +260°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . +220°C
Analog Outputs to GND2 . . . . . . . . . . . . .. .  GND 0.5 to VAA


Description

The ADV7150 (ADV®) is a complete analog output, Video RAM-DAC on a single CMOS monolithic chip. The part is specifically designed for use in high performance, color graphics workstations. The ADV7150 integrates a number of graphic functions onto one device allowing 24-bit direct True-Color operation at the maximum screen update rate of 220 MHz. It implements 30-bit True Color in 24-bit frame buffer designs. The part also supports other modes, including 15-bit True Color and 8-bit Pseudo or Indexed Color. Either the Red, Green or Blue input pixel ports can be used for Pseudo Color.
