ADV476

Features: ·Personal System/2* and VGA* Compatible·Plug-in Replacement for INMOS 171/176·66 MHz Pipelined Operation·Three 6-Bit D/A Converters·256318 Color Palette RAM·RS-343A/RS-170 Compatible Outputs·Blank on All Three Channels··Standard MPU Interface·Asynchronous Access to All Internal Registers...

product image

ADV476 Picture
See larger image
SeekIC No. : 004278064 Detail

ADV476: Features: ·Personal System/2* and VGA* Compatible·Plug-in Replacement for INMOS 171/176·66 MHz Pipelined Operation·Three 6-Bit D/A Converters·256318 Color Palette RAM·RS-343A/RS-170 Compatible Outpu...

ADV476 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADV476
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Personal System/2* and VGA* Compatible
·Plug-in Replacement for INMOS 171/176
·66 MHz Pipelined Operation
·Three 6-Bit D/A Converters
·256318 Color Palette RAM
·RS-343A/RS-170 Compatible Outputs
·Blank on All Three Channels
··Standard MPU Interface
·Asynchronous Access to All Internal Registers
·15 V CMOS Monolithic Construction
·Low Power Dissipation
·Standard 28-Pin, 0.6" DIP and 44-Pin PLCC


Application

·High Resolution Color Graphics
·CAE/CAD/CAM Applications
·Image Processing
·Instrumentation
·Desktop Publishing


Pinout

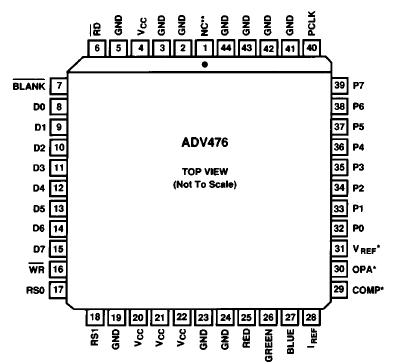

Connection Diagram


Specifications

VAA to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     +7 V
Voltage on Any Digital Pin . . . . .        GND 0.5 V to VAA +0.5 V
Ambient Operating Temperature (TA) . . . . . . . .   0°C to +70°C
Storage Temperature (TS) . . . . . . . . . . . . . .  65°C to +150°C
Junction Temperature (TJ) . . . . . . . . . . . . . . . . . . . .     +150°C
Soldering Temperature (10 secs) . . . . . . . . . . . . . . . . . . 300°C
Vapor Phase Soldering (1 minute) . . . . . . . . . . . . . . . . . 220°C
IOR, IOB, IOG, ISYNC to GND2 . . . . . . . . . . . . . .       0 V to VAA


Description

The ADV476 (ADV®) is a pin compatible and software compatible RAM-DAC designed specifically for VGA and Personal System/2 color graphics.

The ADV476 is a complete analog output RAM-DAC on a single monolithic chip. The part contains a 256318 color lookup table, a pixel mask register as well as a triple 6-bit video D/A converter. The ADV476 is capable of simultaneously displaying up to 256 colors, from a total color palette of 262,144 addressable colors.

The on-chip asynchronous MPU bus allows access to the color lookup table without affecting the input video data via the pixel port. The pixel read mask register provides a convenient way of altering the displayed colors without updating the color lookup table. The ADV476 is capable of generating RGB video output signals which are compatible with RS-343A and RS-170 video standards, without requiring external buffering.
