ADuM1100

Features: `High Data Rate: DC to 100 Mbps (NRZ)`Compatible with 3.3 V and 5.0 V Operation/`Level Translation`125C Max Operating Temperature`Low Power Operation`5 V Operation`1.0 mA Max @ 1 Mbps`4.5 mA Max @ 25 Mbps`16.8 mA Max @ 100 Mbps`3.3 V Operation`0.4 mA Max @ 1 Mbps`3.5 mA Max @ 25 Mbps`7....

product image

ADuM1100 Picture
See larger image
SeekIC No. : 004277976 Detail

ADuM1100: Features: `High Data Rate: DC to 100 Mbps (NRZ)`Compatible with 3.3 V and 5.0 V Operation/`Level Translation`125C Max Operating Temperature`Low Power Operation`5 V Operation`1.0 mA Max @ 1 Mbps`4.5...

ADuM1100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADuM1100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High Data Rate: DC to 100 Mbps (NRZ)
`Compatible with 3.3 V and 5.0 V Operation/
`Level Translation
`125C Max Operating Temperature
`Low Power Operation
`5 V Operation
`1.0 mA Max @ 1 Mbps
`4.5 mA Max @ 25 Mbps
`16.8 mA Max @ 100 Mbps
`3.3 V Operation
`0.4 mA Max @ 1 Mbps
`3.5 mA Max @ 25 Mbps
`7.1 mA Max @ 50 Mbps
`8-Lead SOIC Package (lead-free version available)
`High Common-Mode Transient Immunity: >25 kV/s
`Safety and Regulatory Information
`UL Recognized
`2500 V rms for 1 Minute per UL 1577
`CSA Component Acceptance Notice No. 5A
`VDE Certificate of Conformity
`DIN EN 60747-5-2 (VDE 0884 Part 2): 200301
`DIN EN 60950 (VDE 0805): 200112; EN 60950: 2000
`VIORM = 560 VPEAK




Application

·Digital Fieldbus Isolation
·Opto-Isolator Replacement
·Computer-Peripheral Interface
·Microprocessor System Interface
·General Instrumentation and Data Acquisition

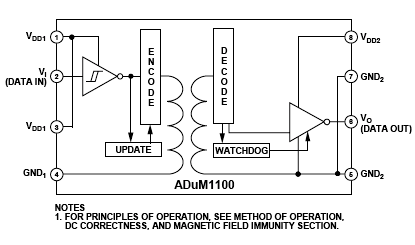

Pinout

ADuM1100 Diagram




Specifications

Max Operating Temp (°C) 125Deg
Insulation Rating (kVrms) 2.5kV rms
# Ch 1
Isolation Voltage (Vrms) 2.5kV rms
Pulse Width Distort (ns) 2ns
Max Prop Delay (ns) 18ns
Isolated Output (V)min 3V
Isolated Output (V)max 5.5V
Output Default State High


Parameter Symbol Min Max Unit
Storage Temperature TST −55 150 °C
Ambient Operating Temperature TA −40 125 °C
Supply Voltages1 VDD1, VDD2 −0.5 6.5 V
Input Voltage,1, 2 VI −0.5 VDDI + 0.5 V
Output Voltage1, 2 VO −0.5 VDDO + 0.5 V
Average Current, per Pin3
Temperature 105°C		 −25 25 mA
Temperature 125°C
Input Current		 -7 +7 mA
Output Current -20 +20 mA
Common-Mode Transients4 −100 +100 kV/s
1 All voltages are relative to their respective ground.
2 VDDI and VDDO refer to the supply voltages on the input and output sides of a given channel, respectively.
3 See for maximum rated current values for various temperatures.
Figure 3
4 Refers to common-mode transients across the insulation barrier. Common-mode transients exceeding the Absolute Maximum Rating may cause latch-up or permanent damage.




Description

The ADuM1100 is a digital isolator based on Analog Devices' iCoupler technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives such as optocoupler devices.

Configured as a pin compatible replacement for existing high speed optocouplers, the ADuM1100 supports data rates as high as 25 Mbps and 100 Mbps.

The ADuM1100 operates with either voltage supply ranging from 3.0 V to 5.5 V, boasts a propagation delay of <18 ns and edge asymmetry of <2 ns, and is compatible with temperatures up to 125°C. It operates at very low power, less than 0.9 mA of quiescent current (sum of both sides), and a dynamic current of less than 160 A per Mbps of data rate. Unlike other optocoupler alternatives, the ADuM1100 provides dc correctness with a patented refresh feature that continuously updates the output signal.

The ADuM1100 is offered in three grades. The ADuM1100AR and ADuM1100BR can operate up to a maximum temperature of 105°C and support data rates up to 25 Mbps and 100 Mbps, respectively. The ADuM1100UR can operate up to a maximum temperature of 125°C and supports data rates up to 100 Mbps.
