ADT7466

Features: ·Monitors two analog voltages or thermistor temperature inputs·One on-chip and up to two remote temperature sensors with series resistance cancellation·Controls and monitors the speed of up to two fans·Automatic fan speed control mode controls system cooling based on measured temperature...

product image

ADT7466 Picture
See larger image
SeekIC No. : 004277773 Detail

ADT7466: Features: ·Monitors two analog voltages or thermistor temperature inputs·One on-chip and up to two remote temperature sensors with series resistance cancellation·Controls and monitors the speed of u...

ADT7466 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADT7466
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Monitors two analog voltages or thermistor temperature inputs
·One on-chip and up to two remote temperature sensors with series resistance cancellation
·Controls and monitors the speed of up to two fans
·Automatic fan speed control mode controls system cooling based on measured temperature
·Enhanced acoustic mode dramatically reduces user perception of changing fan speeds
·Thermal protection feature via THERM output monitors performance impact of Intel® Pentium® 4 processor thermal control circuit via PROCHOT input
·3-wire fan speed measurement
·Limit comparison of all monitored values
·SMBus 1.1 serial interface


Application

·Low acoustic noise notebook PCs


Pinout

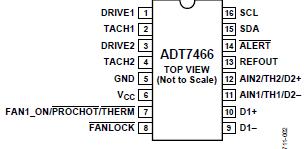

Connection Diagram


Specifications

Positive Supply Voltage (VCC)............6.5 V
Voltage on Any Other Pin........ −0.3 V to 6.5 V
Input Current at Any Pin.............. ±5 mA
Package Input Current.............. ±20 mA
Maximum Junction Temperature (TJ max).... 150°C
Storage Temperature Range.....−65°C to +150°C
Lead Temperature, Soldering:
IR Peak Reflow Temperature............220°C
Lead Temperature (10 sec)............  300°C
ESD Rating...................... 2000 V


Description

The ADT7466 dBCool controller is a complete thermal monitor and dual fan controller for noise-sensitive applications requiring active system cooling. It can monitor two analog voltages or the temperature of two thermistors, plus its own supply voltage. It can monitor the temperature of up to two remote sensor diodes, plus its own internal temperature. ADT7466 can measure and control the speed of up to two fans so that they operate at the lowest possible speed for minimum acoustic noise. The automatic fan speed control loop optimizes fan speed for a given temperature. The effectiveness of the system's thermal solution can be monitored using the PROCHOT input to time and monitor the PROCHOT output of the processor.
