ADT7460

Features: ·Controls and Monitors up to 4 Fan Speeds·1 On-Chip and 2 Remote Temperature Sensors·Dynamic TMIN Control Mode Optimizes System Acoustics Intelligently·Automatic Fan Speed Control Mode Controls System·Cooling Based on Measured Temperature·Enhanced Acoustic Mode Dramatically Reduces User·...

product image

ADT7460 Picture
See larger image
SeekIC No. : 004277764 Detail

ADT7460: Features: ·Controls and Monitors up to 4 Fan Speeds·1 On-Chip and 2 Remote Temperature Sensors·Dynamic TMIN Control Mode Optimizes System Acoustics Intelligently·Automatic Fan Speed Control Mode Con...

ADT7460 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADT7460
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Controls and Monitors up to 4 Fan Speeds
·1 On-Chip and 2 Remote Temperature Sensors
·Dynamic TMIN Control Mode Optimizes System Acoustics Intelligently
·Automatic Fan Speed Control Mode Controls System
·Cooling Based on Measured Temperature
·Enhanced Acoustic Mode Dramatically Reduces User
·Perception of Changing Fan Speeds
·Thermal Protection Feature via THERM Output
·Monitors Performance Impact of Intel® Pentium® 4
·Processor Thermal Control Circuit via THERM Input
·2-Wire and 3-Wire Fan Speed Measurement
·Limit Comparison of All Monitored Values
·Meets SMBus 2.0 Electrical Specifications (Fully SMBus 1.1 Compliant)


Application

·Low Acoustic Noise PCs
·Networking and Telecommunications Equipment

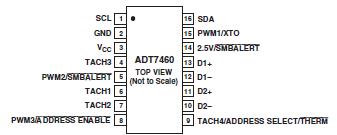

Pinout

Connection Diagram


Specifications

Positive Supply Voltage (VCC) . . . . . . . . . . . . . . . . . . . .6.5 V
Voltage on Any Other Input or Output Pin . .0.3 V to +6.5 V
Input Current at Any Pin . . . . . . . . . . . . . . . . . . . . . . . ±5 mA
Package Input Current . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Maximum Junction Temperature (TJ max) . . . . . . . . . . 150°C
Storage Temperature Range . . . . . . . . . . .65°C to +150°C
Lead Temperature, Soldering
IR Reflow Peak Temp . . . . . . . . . . . . . . . . . . . . . . . .   220°C
Lead Temp (soldering 10 sec) . . . . . . . . . . . . . . . . . .  300°C
ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1500 V


Description

The ADT7460 dBCOOL controller is a thermal monitor and multiple PWM fan controller for noise-sensitive applications requiring active system cooling. It can monitor the temperature of up to two remote sensor diodes, plus its own internal temperature.

ADT7460 can measure and control the speed of up to four fans so that they operate at the lowest possible speed for minimum acoustic noise. The Automatic Fan Speed Control Loop optimizes fan speed for a given temperature. A unique Dynamic TMIN Control Mode enables the system thermals/acoustics to be intelligently managed. The effectiveness of the system's thermal solution can be monitored using the THERM input.

The ADT7460 also provides critical Thermal Protection to the system using the bidirectional THERM pin as an output to prevent system or component overheating.
