ADS8608A8A

Features: •JEDEC standard LVTTL 3.3V power supply•MRS Cycle with address key programs-CAS Latency (2 & 3)-Burst Length (1,2,4,8,& full page)-Burst Type (sequential & Interleave)•4 banks operation•All inputs are sampled at the positive edge of the system clock...

product image

ADS8608A8A Picture
See larger image
SeekIC No. : 004277354 Detail

ADS8608A8A: Features: •JEDEC standard LVTTL 3.3V power supply•MRS Cycle with address key programs-CAS Latency (2 & 3)-Burst Length (1,2,4,8,& full page)-Burst Type (sequential & Interlea...

ADS8608A8A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADS8608A8A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•JEDEC standard LVTTL 3.3V power supply
•MRS Cycle with address key programs
-CAS Latency (2 & 3)
-Burst Length (1,2,4,8,& full page)
-Burst Type (sequential & Interleave)
•4 banks operation
•All inputs are sampled at the positive edge of the system clock
•Burst Read single write operation
•Auto & Self refresh
•DQM for masking
•8192 Refresh Cycles
•Package:54-pins 400 mil TSOP-Type II

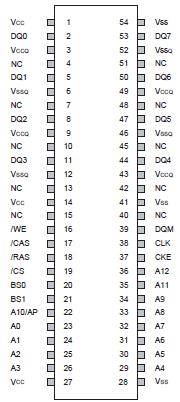

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to Vss
VIN,Vout
-0.3 ~VCC+0.3
V
Voltage on VDD supply relative to Vss
VDD,VDDQ
-0.3 ~ 4.6
V
Storage temperature
TSTG
-55 ~ +150
Power dissipation
PD
1
W
Short circuit current
IOUT
50
mA
Note : Permanent device damage may occur if ABSOLUTE MAXIMUM RATING are exceeded.
           Functional operation should be restricted to recommended operating condition.
           Exposure to higher than recommended voltage for extended periods of time could affect device reliability


Description

The ADS8608A8A are four-bank Synchronous DRAMs organized as 8,388,608 words x 8 bits x 4 banks. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.

Range of operating frequencies, programmable burst length and programmable latencies allow the ADS8608A8A to be useful for a variety of high bandwidth high performance memory system applications
