Product Details

Description



Features:

PIN FOR PIN WITH ADS7841
SINGLE SUPPLY: 2.7V to 5V
4-CHANNEL SINGLE-ENDED OR 2-CHANNEL DIFFERENTIAL INPUT
UP TO 100kHz CONVERSION RATE
86dB SINAD
SERIAL INTERFACE
SSOP-16 PACKAGE


Application

DATA ACQUISITION
TEST AND MEASUREMENT
INDUSTRIAL PROCESS CONTROL
PERSONAL DIGITAL ASSISTANTS
BATTERY-POWERED SYSTEMS

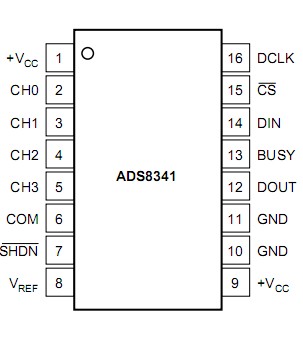

Pinout

Connection Diagram


Specifications

+VCC to GND ........................................................................0.3V to +6V
Analog Inputs to GND ............................................ 0.3V to +VCC + 0.3V
Digital Inputs to GND ...........................................................0.3V to +6V
Power Dissipation .........................................................................250mW
Maximum Junction Temperature ...................................................+150°C
Operating Temperature Range ........................................40°C to +85°C
Storage Temperature Range .........................................65°C to +150°C
Lead Temperature (soldering, 10s) ..............................................+300°C


Description

The ADS8341 is a 4-channel, 16-bit sampling Analog-toDigital (A/D) converter with a synchronous serial interface. Typical power dissipation is 8mW at a 100kHz throughput rate and a +5V supply. The reference voltage (VREF) can be varied between 500mV and VCC, providing a corresponding input voltage range of 0V to VREF. The device includes a shutdown mode that reduces power dissipation to under 15µW. The ADS8341 is tested down to 2.7V operation.

Low power, high speed, and an onboard multiplexer make the ADS8341 ideal for battery-operated systems such as personal digital assistants, portable multi-channel data loggers, and measurement equipment. The serial interface also provides low-cost isolation for remote data acquisition. The ADS8341 is available in an SSOP-16 package and is ensured over the 40°C to +85°C temperature range.
