ADS7891

Features: · 3 MHz Sample Rate, 14-Bit Resolution· Zero Latency· Unipolar, Pseudo Differential Input, Range: − 0 V to 2.5 V· High Speed Parallel Interface· 78 dB SNR and 88.5 dB THD at 3 MSPS· Power Dissipation 85 mW at 3 MSPS· Nap Mode (10 mW Power Dissipation)· Power Down (10 ·W)· Internal ...

product image

ADS7891 Picture
See larger image
SeekIC No. : 004277276 Detail

ADS7891: Features: · 3 MHz Sample Rate, 14-Bit Resolution· Zero Latency· Unipolar, Pseudo Differential Input, Range: − 0 V to 2.5 V· High Speed Parallel Interface· 78 dB SNR and 88.5 dB THD at 3 MSPS· ...

ADS7891 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADS7891
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 3 MHz Sample Rate, 14-Bit Resolution
· Zero Latency
· Unipolar, Pseudo Differential Input, Range:
  − 0 V to 2.5 V
· High Speed Parallel Interface
· 78 dB SNR and 88.5 dB THD at 3 MSPS
· Power Dissipation 85 mW at 3 MSPS
· Nap Mode (10 mW Power Dissipation)
· Power Down (10 ·W)
· Internal Reference
· Internal Reference Buffer
· 8-/14-Bit Bus Transfer
· 48-Pin TQFP Package


Application

·Optical Networking (DWDM, MEMS Based Switching)
·Spectrum Analyzers
·High Speed Data Acquisition Systems
·High Speed Close-Loop Systems
·Telecommunication
·Ultra-Sound Detection


Pinout

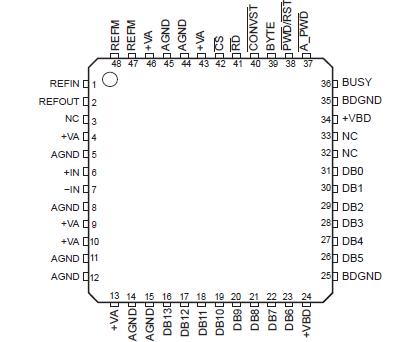

Connection Diagram


Specifications

  UNIT
+IN to AGND −0.3 V to +VA + 0.1 V
-IN to AGND −0.3 V to 0.5 V
+VA to AGND −0.3 V to 7 V
+VBD to BDGND −0.3 V to 7 V
Digital input voltage to GND −0.3 V to (+VBD + 0.3 V)
Digital output to GND −0.3 V to (+VBD + 0.3 V)
Operating temperature range −40°C to 85°C
Storage temperature range −65°C to 150°C
Junction temperature (TJmax) 150°C
TQFP package Power dissipation (TJ MaxTA)/ JA
JA Thermal impedance 86°C/W
Lead temperature, soldering Vapor phase (60 sec) 215°C
Infrared (15 sec) 220°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these o r any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability


Description

The ADS7891 is a 14-bit 3-MSPS A-to-D converter with 2.5-V internal reference. The device includes a capacitor based SAR A/D converter with inherent sample and hold. The device offers a 14-bit parallel interface with an additional byte mode that provides easy interface with 8-bit processors. The device has a pseudo-differential input stage.

The −IN swing of ±200 mV is useful to compensate for ground voltage mismatch between the ADC and sensor and also to cancel common-mode noise. With nap mode enabled, the ADS7891 operates at lower power when used at lower conversion rates. The device is available in a 48-pin TQFP package.
