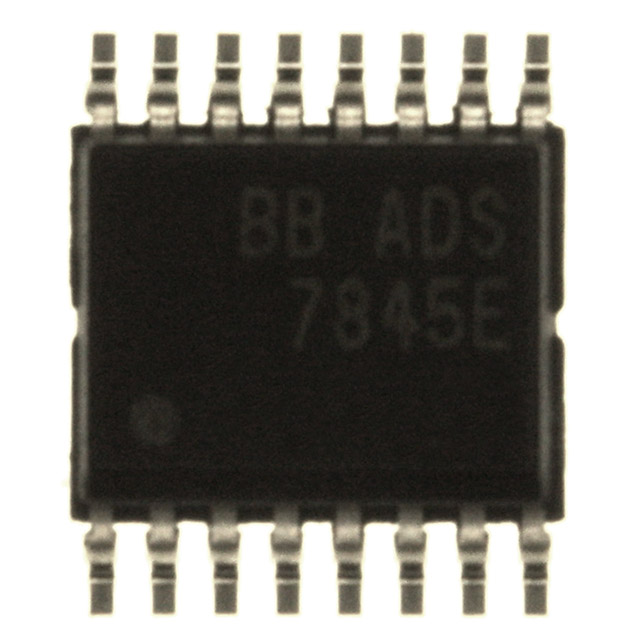

ADS7845E/2K5

The ADS7845E/2K5 is one member of the ADS7845 series.It has the following features including (1)5-wire touch screen interface;(2)up to 125 KHz conversion rate;(3)programmable 8-or 12-bit resolution;(4)sauxiliary analog input.

The ADS7845E/2K5  is a 12-bit sampling analog-to-digital converter (ADC) with a synchronous serial interface and low on-resistance switches for driving touch screens. Typical power dissipation is 750W at a 125kHz throughput rate and a +2.7V supply. The reference voltage (VREF) can be varied between 1V and +VCC , providing a corresponding input voltage range of 0V to VREF. The device includes a shutdown mode which reduces typical power dissipation to under 0.5W. The ADS7845 is guaranteed down to 2.7V operation.Low power, high speed, and on-board switches make the ADS7845 ideal for battery-operated systems such as personal digital assistants with resistive touch screens and other portable equipment. The ADS7845 is available in a 16-lead SSOP package and is guaranteed over the 40°C to +85°C temperature range.The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes no responsibility for the use of this information, and all use of such information shall be entirely at the user's own risk. Prices and specifications are subject to change without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant any BURR-BROWN product for use in life support devices and/or systems.

This integrated circuit of ADS7845E/2K5  can be damaged by ESD. Burr-Brown recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.The ADS7845E/2K5  is a classic Successive Approximation Register (SAR) analog-to-digital (A/D) converter. The architecture of ADS7845E/2K5 is based on capacitive redistribution which inherently includes a sample/hold function. The converter is fabricated on a 0.6s CMOS process.
