ADS7807

Features: ` 35mW max POWER DISSIPATION` 50mW POWER DOWN MODE` 25ms max ACQUISITION AND CONVERSION` ±1.5LSB max INL` DNL: 16 bits No Missing Codes ` 86dB min SINAD WITH 1kHz INPUT` ±10V, 0V TO +5V, AND 0V TO +4V INPUT RANGES` SINGLE +5V SUPPLY OPERATION` PARALLEL AND SERIAL DATA OUTPUT` PIN-COMPAT...

product image

ADS7807 Picture
See larger image
SeekIC No. : 004277191 Detail

ADS7807: Features: ` 35mW max POWER DISSIPATION` 50mW POWER DOWN MODE` 25ms max ACQUISITION AND CONVERSION` ±1.5LSB max INL` DNL: 16 bits No Missing Codes ` 86dB min SINAD WITH 1kHz INPUT` ±10V, 0V TO +5V, ...

ADS7807 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADS7807
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 35mW max POWER DISSIPATION
` 50mW POWER DOWN MODE
` 25ms max ACQUISITION AND CONVERSION
` ±1.5LSB max INL
` DNL: 16 bits "No Missing Codes"
` 86dB min SINAD WITH 1kHz INPUT
` ±10V, 0V TO +5V, AND 0V TO +4V INPUT RANGES
` SINGLE +5V SUPPLY OPERATION
` PARALLEL AND SERIAL DATA OUTPUT
` PIN-COMPATIBLE WITH 12-BIT ADS7806
` USES INTERNAL OR EXTERNAL REFERENCE
` 28-PIN 0.3" PLASTIC DIP AND SOIC


Pinout

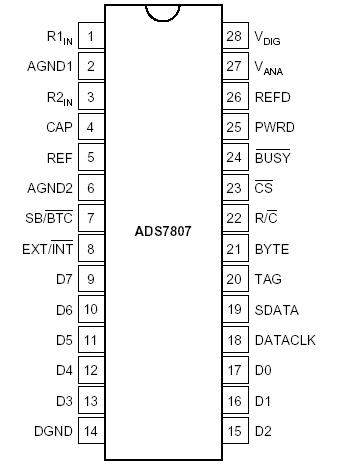

Connection Diagram


Specifications

Analog Inputs: R1IN ................................................................ ±25V
                        R2IN ...............................................................  ±25V
                        CAP .............................. VANA +0.3V to AGND2 0.3V
                        REF .................................. Indefinite Short to AGND2,
Momentary Short to VANA
Ground Voltage Differences: DGND, AGND1, and AGND2 ........ ±0.3V
VANA .......................................................................................... 7V
VDIG to VANA ........................................................................ +0.3V
VDIG ......................................................................................... 7V
Digital Inputs ............................................... 0.3V to VDIG +0.3V
Maximum Junction Temperature ...................................... +165°C
Internal Power Dissipation ................................................ 825mW
Lead Temperature (soldering, 10s) ................................. +300°C


Description

The ADS7807 is a low-power, 16-bit, sampling A/D using state-of-the-art CMOS structures. It contains a complete 16-bit, capacitor-based, SAR A/D with S/H, clock, reference, and microprocessor interface with parallel and serial output drivers.

The ADS7807 can acquire and convert 16-bits to within ±1.5LSB in 25ms max while consuming only 35mW max. Laser-trimmed scaling resistors provide standard industrial input ranges of ±10V and 0V to +5V. In addition, a 0V to +4V range allows development of complete single supply systems.

The 28-pin ADS7807 is available in a plastic 0.3" DIP and in an SOIC, both fully specified for operation over the industrial 40°C to +85°C temperature range.
