ADS5122CGHK

ADC (A/D Converters) Low Power 8 Ch 10-bit 65MSPS 1.8V

product image

ADS5122CGHK Picture
SeekIC No. : 00332999 Detail

ADS5122CGHK: ADC (A/D Converters) Low Power 8 Ch 10-bit 65MSPS 1.8V

floor Price/Ceiling Price

US $ 36.32~38.44 / Piece | Get Latest Price
Part Number:
ADS5122CGHK
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~64
  • 64~100
  • Unit Price
  • $38.44
  • $36.32
  • Processing time
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/12

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Converters : 8 Number of ADC Inputs : 8
Architecture : Pipelined Conversion Rate : 65000 KSPs
Resolution : 10 bit Input Type : Voltage
Interface Type : Parallel SNR : 59 dB
Voltage Reference : Internal, External Supply Voltage - Max : 2 V
Supply Voltage - Min : 1.65 V Maximum Power Dissipation : 800 mW
Maximum Operating Temperature : + 70 C Mounting Style : SMD/SMT
Package / Case : BGA-257 Packaging : Tray

Description

Mounting Style : SMD/SMT
Input Type : Voltage
Resolution : 10 bit
Number of ADC Inputs : 8
Number of Converters : 8
Interface Type : Parallel
Maximum Operating Temperature : + 70 C
Packaging : Tray
Supply Voltage - Min : 1.65 V
Architecture : Pipelined
Voltage Reference : Internal, External
Maximum Power Dissipation : 800 mW
Supply Voltage - Max : 2 V
Conversion Rate : 65000 KSPs
SNR : 59 dB
Package / Case : BGA-257


Features:

· 8 DIFFERENTIAL ANALOG INPUTS
· 1VPP DIFFERENTIAL INPUT RANGE
· INT/EXT VOLTAGE REFERENCE
· ANALOG/DIGITAL SUPPLY: 1.8V
· DIGITAL I/O SUPPLY: 1.8V/3.3V
· DIFFERENTIAL NONLINEARITY: ±0.4LSB
· INTEGRAL NONLINEARITY: ±1.0LSB
· SIGNAL-TO-NOISE: 59dB at fIN = 20MHz
· POWER DISSIPATION: 733mW
· INDIVIDUAL CHANNEL POWER-DOWN
· 257-LEAD, 0.8 BALL PITCH, PLASTIC
  MicroSTAR BGA™ (16mm • 16mm)



Application

 PORTABLE ULTRASOUND


Pinout

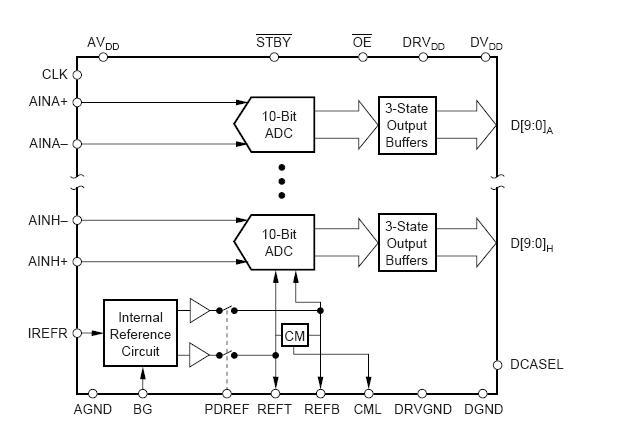

  Connection Diagram


Specifications

Supply Voltage: AVDD to AGND, DVDD to DGND ............. 0.3V to +2.2V
DRVDD to DRGND ........................................................... 0.3V to +4.0V
AGND to DGND ............................................................... 0.3V to +0.3V
AVDD to DVDD ................................................................ 2.2V to +2.2V
Reference Voltage Input Range REFT, REFB to AGND .0.3V to AVDD + 0.3V
Analog Input Voltage Range AIN to AGND ...........  0.3V to AVDD + 0.3V
Clock Input CLK to DGND .....................................  0.3V to AVDD + 0.3V
Digital Input to DGND ...........................................  0.3V to DVDD + 0.3V
Digital Outputs to DRGND .................................. 0.3V to DRVDD + 0.3V
Operating Temperature Range (TJ) ................................... 0°C to +105°C
Storage Temperature Range (TSTG) .................................65°C + 150°C



Description

The ADS5122 is a low-power, 8-channel, 10-bit, 65MSPS CMOS Analog-to-Digital Converter (ADC) that operates froma single 1.8V supply, while offering 1.8V and 3.3V digital I/O
 flexibility. A single-ended input clock is used for simultaneous sampling of up to eight analog differential input channels. The flexible duty cycle adjust circuit (DCASEL) allows the use of a non-50% clock duty cycle. Individual standby pins allow users the ability to power-down any number of ADCs.

The internal reference can be bypassed to use an external eference to suit the accuracy and temperature drift requirements of the application. A 10-bit parallel bus on eight channels is provided with 3-state outputs. The speed, resolution, and low power of the ADS5122 make it ideal for applications requiring high-density signal processing in low-power environments.

The ADS5122 is characterized for operation from 0°C to 70°C.




Parameters:

Technical/Catalog InformationADS5122CGHK
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Bits10
Package / Case257-BGA MICROSTAR
Data InterfaceParallel
PackagingTube
Sampling Rate (Per Second)65M
Operating Temperature0°C ~ 70°C
Voltage Supply SourceAnalog and Digital
Number of Inputs and Type8 Single-Ended, Unipolar; 4 Differential, Unipolar
Number of Converters8
Power Dissipation (Max)800mW
Drawing Number296; 4145273-4; GHK; 257
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names ADS5122CGHK
ADS5122CGHK
296 15075 ND
29615075ND
296-15075
