Features: ` High-Speed, Wide Bandwidth ∆ ADC` 10MSPS Output Data Rate` 4.9MHz Signal Bandwidth` 86dBFS Signal-to-Noise Ratio` −94dB Total Harmonic Distortion` 95dB Spurious-Free Dynamic Range` On-Chip Digital Filter Simplifies Anti-Alias Requirements`SYNC Pin for Simultaneous Sampling ...
ADS1610: Features: ` High-Speed, Wide Bandwidth ∆ ADC` 10MSPS Output Data Rate` 4.9MHz Signal Bandwidth` 86dBFS Signal-to-Noise Ratio` −94dB Total Harmonic Distortion` 95dB Spurious-Free Dynamic ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $100.85 - 100.85 / Piece
Data Conversion IC Development Tools ADS1015 Perf Demo Kit
US $.6 - .61 / Piece
ADC (A/D Converters) 12B ADC with Int PGA Comp Osc and Ref
AVDD to AGND ...............................................−0.3 to +6 V
DVDD to DGND ............................................−0.3 to +3.6 V
AGND to DGND ............................................−0.3 to +0.3 V
Input Current ......................................100mA, Momentary
Input Current ........................................10mA, Continuous
Analog I/O to AGND ..........................−0.3 to AVDD + 0.3 V
Digital I/O to DGND ...........................−0.3 to DVDD + 0.3 V
Maximum Junction Temperature ............................+150 °C
Operating Temperature Range ..................−40 to +105 °C
Storage Temperature Range .....................−60 to +150 °C
Lead Temperature (soldering, 10s) .......................+260 °C
The ADS1610 is a high-speed, high-precision, deltasigma (∆) analog-to-digital converter (ADC) with 16-bit resolution operating from a +5V analog and a +3V digital supply. Featuring an advanced multi-stage analog modulator combined with an on-chip digital decimation filter, the ADS1610 achieves 86dBFS signal-to-noise ratio (SNR) in a 5MHz signal bandwidth. The device offers outstanding performance at these speeds with a total harmonic distortion of −94dB.
The ADS1610 ∆ topology provides key system-level design advantages with respect to anti-alias filtering and clock jitter. The design of the anti-alias filter is simplified since the on-chip digital filter greatly attenuates out-of-band signals. The ADS1601s filter has a brick wall response with a very flat passband (±0.0002dB of ripple) followed immediately by a very wide stop band (5MHz to 55MHz). Clock jitter becomes especially critical when digitizing high frequency, large-amplitude signals. The ADS1610 significantly reduces clock jitter sensitivity by an effective averaging of clock jitter as a result of oversampling the input signal. Output data is supplied over a parallel interface and easily connects to TMS320 digital signal processors (DSPs).

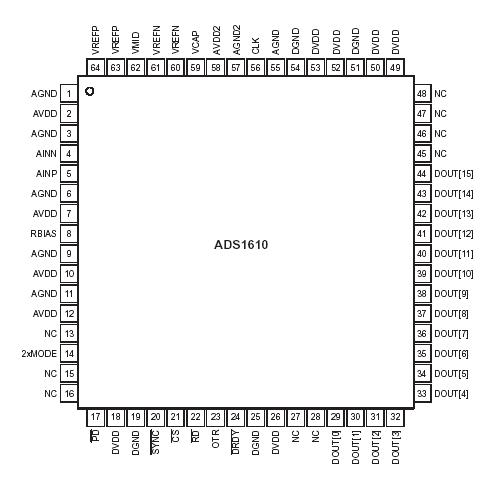

The power dissipation can be adjusted with an external resistor, allowing for reduction at lower operating speeds. With its outstanding high-speed performance, the ADS1610 is well-suited for demanding applications in data acquisition, scientific instruments, test and measurement equipment, and communications. The ADS1610 is offered in a TQFP-64 package and is specified from −40°C to +85°C.
