ADS1210PG4

ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter

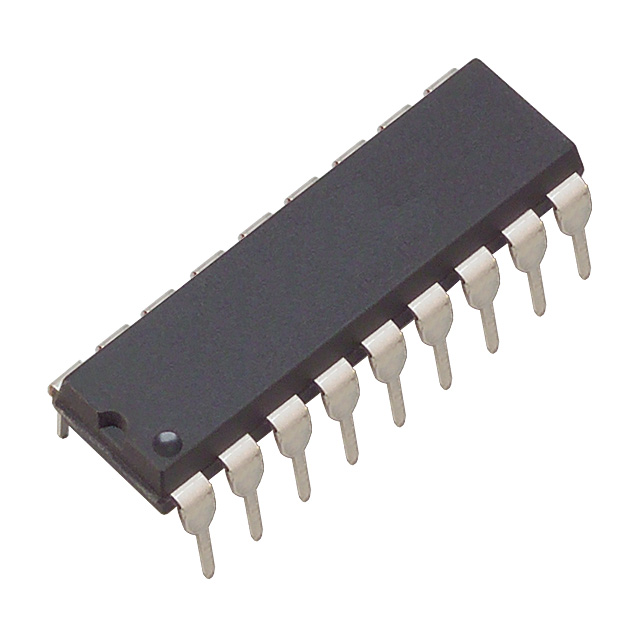

product image

ADS1210PG4 Picture
See larger image
SeekIC No. : 00329157 Detail

ADS1210PG4: ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter

ADS1210PG4 Data Sheet

floor Price/Ceiling Price

US $ 10.24~11.84 / Piece | Get Latest Price
Part Number:
ADS1210PG4
Mfg:
Texas Instruments
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • Unit Price
  • $11.84
  • $11.14
  • $10.44
  • $10.24
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Converters : 1 Number of ADC Inputs : 1
Architecture : Delta-Sigma Conversion Rate : 16 KSPs
Resolution : 24 bit Input Type : Voltage
Interface Type : 2-Wire, 3-Wire, 4-Wire, Serial, SPI SNR : Yes
Voltage Reference : Internal, External Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V Maximum Power Dissipation : 60 mW
Maximum Operating Temperature : + 85 C Mounting Style : Through Hole
Package / Case : PDIP-18 Packaging : Tube

Description

Architecture : Delta-Sigma
Packaging : Tube
Input Type : Voltage
SNR : Yes
Maximum Operating Temperature : + 85 C
Number of Converters : 1
Number of ADC Inputs : 1
Resolution : 24 bit
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Mounting Style : Through Hole
Voltage Reference : Internal, External
Conversion Rate : 16 KSPs
Interface Type : 2-Wire, 3-Wire, 4-Wire, Serial, SPI
Maximum Power Dissipation : 60 mW
Package / Case : PDIP-18


Parameters:

Technical/Catalog InformationADS1210PG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Bits24
Package / Case18-DIP (300 mil)
Data InterfaceSerial
PackagingTube
Sampling Rate (Per Second)16k
Operating Temperature-40°C ~ 85°C
Voltage Supply SourceAnalog and Digital
Number of Inputs and Type2 Single-Ended, Unipolar; 2 Single-Ended, Bipolar; 1 Differential, Unipolar; 1 Differential, Bipolar
Number of Converters1
Power Dissipation (Max)40mW
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADS1210PG4
ADS1210PG4
