ADS-119

Features:

• 12-bit resolution
• 10MHz minimum sampling rate
• Functionally complete
• Small 24-pin DDIP or SMT package
• Requires only ±5V supplies
• Low-power, 1.8 Watts
• Outstanding dynamic performance
• Edge-triggered
• No missing codes over temperature
• Ideal for both time and frequency-domain applications

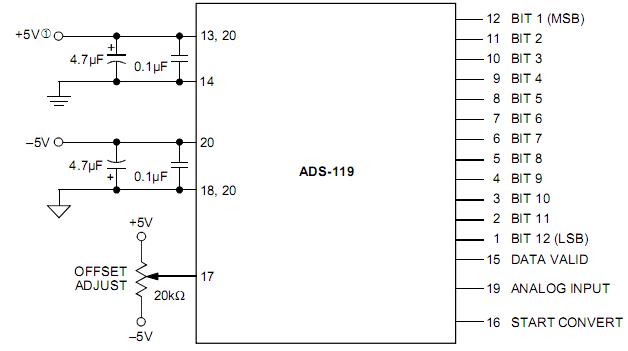

Pinout




Specifications

+5V Supply (Pin 13, 21)                             0 to +6                                Volts
5V Supply (Pin 20)                                  0 to 6                                 Volts
Digital Input (Pin 16)                                 0.3 to +VDD +0.3               Volts
Analog Input (Pin 19)                                ±5                                        Volts
Lead Temp (10 seconds)                          +300                                     °C


Description

The ADS-119 is a high-performance, 12-bit, 10MHz sampling A/D converter.  The device samples input signals up to Nyquist frequencies with no missing codes.  It features excellent dynamic performance including a typical SNR of 69dB.

Packaged in a metal-sealed, ceramic, 24-pin DDIP , the functionally complete ADS-119 contains a fast-settling sample/ hold amplifier, a subranging (two-pass) A/D converter, a precise voltage reference, timing/control logic, and error- correction circuitry.  All timing and control logic operates from the rising edge of a single start convert pulse.  Digital input and output levels are TTL. Requiring only ±5V supplies, the ADS-119 typically dissipates 1.8 Watts.  The unit offers a bipolar input range of ±1.5V. Models are available for use in either commercial (0 to +70°C) or military (55 to +125°C) operating temperature ranges.
