Features: Ultracompact SC70-5/TSOT-5 Low temperature coefficient SOIC-8: 3 ppm/ SC70-5/TSOT-5: 9 ppm/ Initial accuracy ± 0.1% No external capacitor required Low noise 10 V p-p (0.1 Hz to 10 Hz) Wide operating range ADR01: 12 V to 40 V ADR02: 7 V to 40 V ADR03: 4.5 V to 40 V ADR06: 5.0 V to 40 V High output current 10 mA Wide temperature range: 40 to +125 ADR01/ADR02/ADR03 pin compatible to industry-standard REF01/REF02/REF031
ApplicationPrecision data acquisition systems High resolution converters Industrial process control systems Precision instruments PCMCIA cards

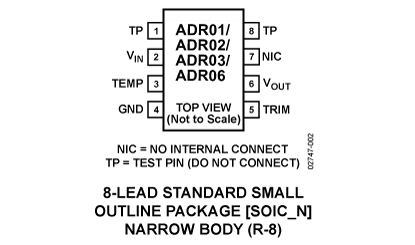

Pinout
Specifications
| Parameter |
Rating |
| Supply Voltage |
40 V |
| Output Short-Circuit Duration to GND |
Indefinite |
| Storage Temperature Range |
65 to +150 |
| Operating Temperature Range |
40 to +125 |
| Junction Temperature Range: KS, UJ, and R Packages |
65 to +150 |
| Lead Temperature Range (Soldering, 60 Sec) |
300 |
| Vout |
10 |
| Initial Accuracy (%) |
0.05 |
| Ref Out TC (ppm/C) |
3ppm/C |
| Supply Voltage Range (V) |
+12 to +40 |
| Supply Current |
1mA |
| Ref Output Current (mA) |
10mA |
| 0.1-10 Hz Noise (V p-p) |
20V p-p |
| Temp Range(s) |
-40 to +125,0 to +70 |
| Package |
SC70,SOIC,TSOT |
| Reference Type |
Series |
DescriptionThe ADR01, ADR02, ADR03, and ADR06 are precision 10 V, 5 V, 2.5 V, and 3.0 V band gap voltage references featuring high accuracy, high stability, and low power. The parts are housed in tiny SC70-5 and TSOT-5 packages, as well as the SOIC-8 versions. The SOIC-8 versions of the ADR01, ADR02, and ADR03 are drop-in replacements1 to the industry-standard REF01, REF02, and REF03. The small footprint and wide operating range make the ADR0x references ideally suited for general-purpose and space-constraint applications.
With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is provided on the ADR01, ADR02, ADR03, and ADR06 for fine adjustment of the output voltage.
The ADR01, ADR02, ADR03, and ADR06 are compact, low drift voltage references that provide an extremely stable output voltage from a wide supply voltage range. They are available in SC70-5, TSOT-5, and SOIC-8 packages with A and B grade selections. All parts are specified over the extended industrial (40 to +125) temperature range.
