ADP1720

Features: `Wide Input Voltage Range: 4V to 28V`Low Quiescent Current: 25A`±1% Initial Accuracy`Very Low Dropout Voltage: 300 mV @ 50mA`Fixed 3.3V and 5V Voltage Options`Adjustable Output from 1.2V to 5.0V`Optimized for Small 1F Ceramic Capacitors`Short Circuit Protection`Thermal Overload Protectio...

product image

ADP1720 Picture
See larger image
SeekIC No. : 004276345 Detail

ADP1720: Features: `Wide Input Voltage Range: 4V to 28V`Low Quiescent Current: 25A`±1% Initial Accuracy`Very Low Dropout Voltage: 300 mV @ 50mA`Fixed 3.3V and 5V Voltage Options`Adjustable Output from 1.2V t...

ADP1720 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADP1720
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Wide Input Voltage Range: 4V to 28V
`Low Quiescent Current: 25A
`±1% Initial Accuracy
`Very Low Dropout Voltage: 300 mV @ 50mA
`Fixed 3.3V and 5V Voltage Options
`Adjustable Output from 1.2V to 5.0V
`Optimized for Small 1F Ceramic Capacitors
`Short Circuit Protection
`Thermal Overload Protection
`Spacing-saving Thermally Enhanced MSOP package


Application

·Industrial Applications
·Battery-Power Regulators


Pinout

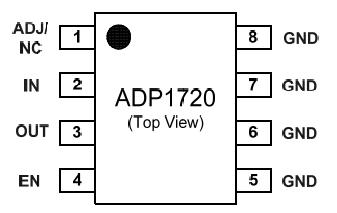

Connection Diagram


Specifications

Parameter Rating
IN, EN to GND -0.3V to +30V
IN to OUT -0.3V to +30V
VOUT, ADJ to GND -0.3V to +7V
Storage Temperature Range 65°C to +150°C
Operating Temperature Range 40°C to +125°C
Operating Junction Temperature 150°C
Lead Temperature Range (Soldering, 10sec) 300°C



Description

The ADP1720 is a high-voltage, micro-power, low dropout linear regulator. Designed for robust operation, the ADP1720 includes current limiting and short-circuit protection, and thermal overload protection . With just 25A of quiescent supply current and a micro-power shutdown mode, this device is ideal for applications that require low quiescent current. The small thermally-enhanced MSOP package and 1F ceramic output capacitor provides a compact solution with low thermal resistance for high power dissipation.

The ADP1720 is available in fixed output voltages of 3.3V and 5V, or its output voltage can be adjusted over a range of 1.2V to 5V. It  operates over the -40°C to 125°C ambient temperature range.
