ADP1110

Features: Operates at Supply Voltages From 1.0 V to 30 VStep-Up or Step-Down ModeMinimal External Components RequiredLow-Battery DetectorUser-Adjustable Current LimitingFixed or Adjustable Output Voltage Versions8-Pin DIP or SO-8 PackageApplicationCellular TelephonesSingle-Cell to 5 V ConvertersLa...

product image

ADP1110 Picture
See larger image
SeekIC No. : 004276261 Detail

ADP1110: Features: Operates at Supply Voltages From 1.0 V to 30 VStep-Up or Step-Down ModeMinimal External Components RequiredLow-Battery DetectorUser-Adjustable Current LimitingFixed or Adjustable Output Vo...

ADP1110 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADP1110
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Operates at Supply Voltages From 1.0 V to 30 V
Step-Up or Step-Down Mode
Minimal External Components Required
Low-Battery Detector
User-Adjustable Current Limiting
Fixed or Adjustable Output Voltage Versions
8-Pin DIP or SO-8 Package


Application

Cellular Telephones
Single-Cell to 5 V Converters
Laptop and Palmtop Computers
Pagers
Cameras
Battery Backup Supplies
Portable Instruments
Laser Diode Drivers
Hand-Held Inventory Computers


Pinout

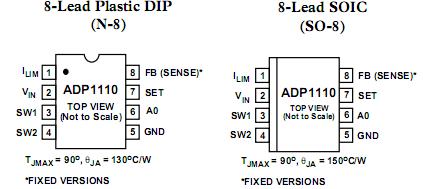

Connection Diagram


Specifications

Input Supply Voltage, Step-Up Mode  . . . . . . . . . . . . . . .  15 V
Input Supply Voltage, Step-Down Mode  . . . . . . . . . . . . .  36 V
SW1 Pin Voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  50 V
SW2 Pin Voltage  . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VIN
Feedback Pin Voltage (ADP1110)  . . . . . . . . . . . . . . . . . . 5.5 V
Switch Current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 A
Maximum Power Dissipation  . . . . . . . . . . . . . . . . . .    500 mW
Operating Temperature Range  . . . . . . . . . . . . . 0°C to +70°C
Storage Temperature Range  . . . . . . . . . . . . .65°C to 150°C
Lead Temperature (Soldering, 10 sec)  . . . . . . . . . . . . . 300°C


Description

The ADP1110 is part of a family of step-up/step-down switching regulators that operate from an input voltage supply as little as 1.0 V. This very low input voltage allows the product to be used in applications that use a single cell as the primary power source. The ADP1110 can be configured to operate in either step-up or step-down mode, but for input voltages greater than 3 V, the ADP1111 would be a more effective solution. An auxiliary gain amplifier can serve as a low battery detector or as a linear regulator.

The quiescent current of 300 µA makes the ADP1110 useful in remote or battery powered applications.The 70 kHz frequency operation also allows for the use of surface-mount external capacitors and inductors. Battery protection circuitry limits the effect of reverse current to safe levels at reverse voltages up to 1.6 V.
