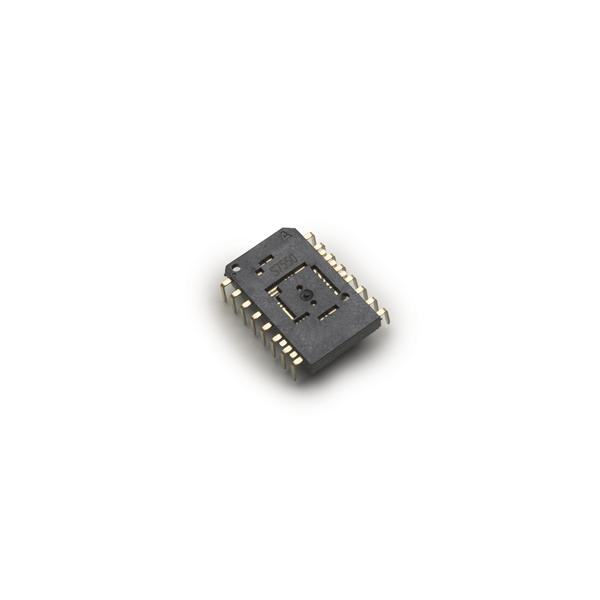

ADNS-7550

Package / Case :
Operating Supply Voltage : 3.7 V
Maximum Operating Temperature : + 40 C
Minimum Operating Temperature : 0 C


Specifications

Address the needs to develop laser to compact mouse. Easy of assembly due to its integrated package. SFF provides good market opportunity in non-mouse applications, such as, application in mobile communication devices, portable computer peripherals, mobile electronic consumer devices, and other integrated input devices etc. It is a good platform to move on for cost reduction, customization and integration.


Description

Avago Technologies ADNS-7550 is a high precision small form factor LaserStream navigation sensor. ADNS-7550 is targeted at corded applications and space-constrained designs.  This integrated high performance small form factor (SFF) LaserStream solution consists of 3 types of lenses to enable customer design-in new mouse model without changing its existing mouse base plate.  Customers can choose either SFF lens - ADNS-6150, trim les - ADNS-6160-001, or wide trim lens - ADNS-6170-002 for its navigation system.  It's targeted at optical mouse OEM and Retail partners; the chip integrates the sensor and VCSEL into a signle package, providing a compact real estate component allowing for more compact and cost-effective mouse designs.  Powered by latest Avago Technologies LaserStream engine, the mouse can track on more surfaces than traditional LED-based optical navigation, especially on glossy and reflective ones.
