ADN2847

Features: 50 Mbps to 3.3 Gbps OperationSingle 3.3 V OperationTypical Rise/Fall Time 80 psBias Current Range 2 mA to 100 mAModulation Current Range 5 mA to 80 mADual MPD Functionality for DWDM50 mA Supply Current at 3.3 VClosed-Loop Control of Power and Extinction RatioFull Current Parameter Monito...

product image

ADN2847 Picture
See larger image
SeekIC No. : 004276205 Detail

ADN2847: Features: 50 Mbps to 3.3 Gbps OperationSingle 3.3 V OperationTypical Rise/Fall Time 80 psBias Current Range 2 mA to 100 mAModulation Current Range 5 mA to 80 mADual MPD Functionality for DWDM50 mA S...

ADN2847 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADN2847
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

50 Mbps to 3.3 Gbps Operation
Single 3.3 V Operation
Typical Rise/Fall Time 80 ps
Bias Current Range 2 mA to 100 mA
Modulation Current Range 5 mA to 80 mA
Dual MPD Functionality for DWDM
50 mA Supply Current at 3.3 V
Closed-Loop Control of Power and Extinction Ratio
Full Current Parameter Monitoring
Laser Fail and Laser Degrade Alarms
Automatic Laser Shutdown, ALS
Optional Clocked Data
Supports FEC Rates
Available in Die Form




Application

SONET OC-1/3/12/48
SDH STM-0/1/4/16
Fibre Channel
Gigabit Ethernet
DWDM Dual MPD Wavelength Control




Pinout

Connection Diagram

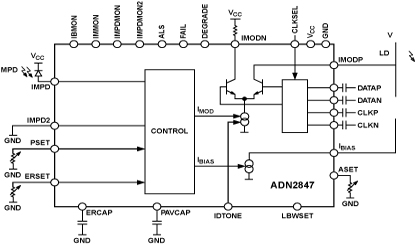

ADN2847 Diagram




Specifications

VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.2 V
Digital Inputs (ALS, LBWSET, CLKSEL) 0.3 V to VCC + 0.3 V
IMODN, IMODP . . . . . . . . . . . . . . . . . . . . . . . . .VCC + 1.2 V
Operating Temperature Range
Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature Range . . . . . . . . . . 65 to +150
Junction Temperature (TJ max) . . . . . . . . . . . . . . .. . . 150
48-Lead LFCSP Package
Power Dissipation2 . . . . . . . . . . . . . . . (TJ max TA)/qJA W
qJA Thermal Impedance3. . . . . . . . . . . . . . . . . . . . . 25/W
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . 300
32-Lead LFCSP Package
Power Dissipation2. . . . . . . . . . . . . . .. (TJ max TA)/qJA W
Lead Temperature (Soldering 10 sec) . . . . . . . . . . . . 300

Data Rate (Gbps) 3.3
Voltage Supply (V) 3.3V
Single Ended/Differential Both
Package 5x5 mm LFCSP,7x7 mm LFCSP
Modulation Current (mA) 80mA
Laser Bias Current (mA) 100mA
Rise/Fall Time (ps) 80ps
Dual Loop X
MSA Compliance SFF





Description

The ADN2847 uses a unique control algorithm to control both average power and extinction ratio of the laser diode, LD, after initial factory setup. External component count and PCB area are low as both power and extinction ratio control are fully integrated. Programmable alarms are provided for laser fail (end of life) and laser degrade (impending fail). Optional dual MPD current monitoring is designed into the ADN2847 specifically for DWDM wavelength control.
