ADN2841

Features: 50 Mbps to 2.7 Gbps OperationTypical Rise/Fall Time 80 psBias Current Range 2 to 100 mAModulation Current Range 5 to 80 mAMonitor Photodiode Current 50 A to 1200 AClosed-Loop Control of Power and Extinction RatioLaser Fail and Laser Degrade AlarmsAutomatic Laser Shutdown, ALSDual MPD F...

product image

ADN2841 Picture
See larger image
SeekIC No. : 004276196 Detail

ADN2841: Features: 50 Mbps to 2.7 Gbps OperationTypical Rise/Fall Time 80 psBias Current Range 2 to 100 mAModulation Current Range 5 to 80 mAMonitor Photodiode Current 50 A to 1200 AClosed-Loop Control of ...

ADN2841 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADN2841
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

50 Mbps to 2.7 Gbps Operation
Typical Rise/Fall Time 80 ps
Bias Current Range 2 to 100 mA
Modulation Current Range 5 to 80 mA
Monitor Photodiode Current 50 A to 1200 A
Closed-Loop Control of Power and Extinction Ratio
Laser Fail and Laser Degrade Alarms
Automatic Laser Shutdown, ALS
Dual MPD Functionality for DWDM
Optional Clocked Data
Full Current Parameter Monitoring
5 V Operation
48-Lead LFCSP Package
32-Lead LFCSP Package (Reduced Functionality)




Application

DWDM Dual MPD Wavelength Fixing
SONET OC-1/3/12/48
SDH STM-1/4/16
Fiber Channel
Gigabit Ethernet




Pinout

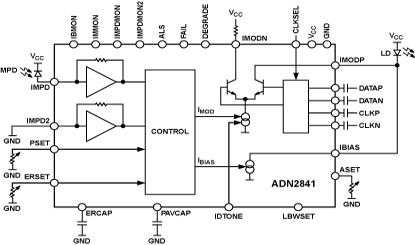

ADN2841 Diagram

Connection Diagram

ADN2841 Diagram




Specifications

Data Rate (Gbps) 2.7
Voltage Supply (V) 5V
Single Ended/Differential Both
Package 5x5 mm LFCSP,7x7 mm LFCSP
Modulation Current (mA) 80mA
Laser Bias Current (mA) 100mA
Rise/Fall Time (ps) 80ps
Dual Loop X
MSA Compliance SFF


VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 V
Operating Temperature Range
Industrial . . . . . . . . . . . . . . . . . . . . . . . . . . 40°Cto+85°C
Storage Temperature Range . . . . . . . . . .65°C to +150°C
Junction Temperature (TJ MAX) . . . . . . . . . . . . . . . . 150°C
48-Lead LFCSP Package
Power Dissipation . . . . . . . . . . . . . . .(TJ MAX TA)/JA mW
JA Thermal Impedance2. . . . . . . . . . . . . . . . . . . . 25°C/W
Lead Temperature (Soldering for 10 sec) . . . . . . . .300°C
32-Lead LFCSP Package
Power Dissipation . . . . . . . . . . . . . . . (TJMAX TA)/JA mW
JA Thermal Impedance2 . . . . . . . . . . . . . . . . . . . . 32°C/W
Lead Temperature (Soldering for 10 sec) . . . . . . . . 300°C




Description

The ADN2841 uses a unique control algorithm to control both average power and extinction ratio of the laser diode (LD) after initial factory set up. External component count and PCB area are low as both power and extinction ratio control are fully integrated. Programmable alarms are provided for laser fail (end of life) and laser degrade (impending fail). The ADN2841 has circuitry for a second monitor photodiode which enables DWDM wavelength control.
