ADN2821

Features: ` Bandwidth: 8 GHz min` Input Noise Current Density: 12pAHz` Optical sensitivity: −19 dBm1` Differential Transimpedance /Linear Range:` ADN2821_2: 2.0 k/0.20 mA p-p` ADN2821_5: 5.0 k/0.08 mA p -p` ADN2821_10: 10.0 k/0.04 mA p-p` Power Dissipation: 150 mW` Differential Output Swing:...

product image

ADN2821 Picture
See larger image
SeekIC No. : 004276190 Detail

ADN2821: Features: ` Bandwidth: 8 GHz min` Input Noise Current Density: 12pAHz` Optical sensitivity: −19 dBm1` Differential Transimpedance /Linear Range:` ADN2821_2: 2.0 k/0.20 mA p-p` ADN2821_5: 5.0 k...

ADN2821 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADN2821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Bandwidth: 8 GHz min
` Input Noise Current Density: 12pAHz
` Optical sensitivity: −19 dBm1
` Differential Transimpedance /Linear Range:
` ADN2821_2: 2.0 k/0.20 mA p-p
` ADN2821_5: 5.0 k/0.08 mA p -p
` ADN2821_10: 10.0 k/0.04 mA p-p
` Power Dissipation: 150 mW
` Differential Output Swing: 400 mV p-p min
` Input Overload: 3.25 dBm @ 10 dB ER
` Low-F cutoff:
` ADN2821_10: 25 kHz w/CLF = 0.5 nF
` On-Chip PD filter: RF = 200 , CF = 20 pF
` RSSI voltage and current ratio: 0.8V/mA
` Die Size: 0.65 mm * 1.20 mm




Application

· 10.7 Gbps Optical Modules
· SONET/SDH OC-192/STM-64 and 10 GbE
· Receivers, Transceivers, Transponders

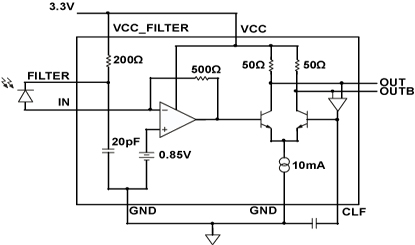

Pinout

ADN2821 Diagram




Specifications

-3 dB Bandwidth (GHz) 9.5GHz
Transimpedance (kohm) 5kOhms
Voltage Supply (V) +3.3V
Power Dissipation (mW) 150mW
Current Noise (pA/rtHz) 12pA/rtHz
Die Size (mm x mm) 0.7 x 1.2
Overload Current (mA p-p) 3.25mA p-p
Total Jitter (pS p-p) 0
Output Return Loss (dB) -12dB





Description

The ADN2821 is a 10 Gbps high-performance SiGe Transimpedance Amplifier specifically designed for use in small form factor optical receivers. It  features low input referred noise

The ADN2821_2/5/10 are a series of compact, high performance SiGe 3.3V power supply Trans-impedance Amplifiers (TIAs) optimized for small form factor 10Gbps Metro-Access and Ethernet PD-TIA modules. It features low input referred noise current and a range of trans-impedance gains, suitable for driving a typical CDR or transceiver directly. 8GHz minimum BW enables up to 11.1Gbps operation; 1.1A input referred noise current enables −19dBm sensitivity; 3.25dBm input overload current at a 10dB extinction ratio. RSSI output signal proportional to average input current is available for monitoring and alarm generation. For assembly in small form factor packages, the ADN2821 series integrates a photodiode filter RFCF network on chip and features 25kHz low frequency cutoff with small 0.5nF externalcapacitor. It operates with a 3.3V ±0.3V powe supply and is available in die form.
