Product Details

Description



Features:

Technology: high performance SiGe
Bandwidth: 9 GHz
Input noise current density: 1.0 µA
Optical sensitivity: 19.3 dBm
Differential transimpedance: 5000 V/A
Power dissipation: 200 mW
Input current overload: 2.8 mA p-p
Linear input range: 0.15 mA p-p
Output resistance: 50 Ω/side
Output offset adjustment range: 240 mV
Average input power monitor: 1 V/mA
Die size: 0.87 mm * 1.06 mm





Application

10.7 Gbps optical modules
SONET/SDH OC-192/STM-64 and 10 GbE
receivers, transceivers, and transponders





Pinout

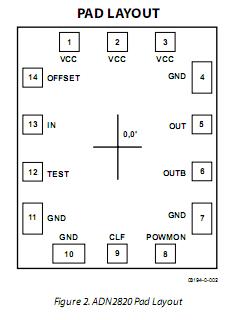

  Connection Diagram




Specifications

Parameter Rating
Supply Voltage (VCC to GND) 5.2 V
Internal Power Dissipation
Output Short Circuit Duration Indefinite
Maximum Input Current 5 mA
Storage Temperature Range 65°C to +125°C
Operating Ambient Temperature Range 15°C to +85°C
Maximum Junction Temperature 165°C
Die Attach Temperature (<60 seconds) 450°C





Description

The ADN2820 is a compact, high performance SiGe transimpedance amplifier (TIA) optimized for 10 Gbps metro access and Ethernet applications. It is a single-chip solution for detecting photodiode
