Features:

Serial data input: 12.3 Mb/s to 2.7 Gb/s
Exceeds SONET requirements for jitter transfer/ generation/tolerance
Quantizer sensitivity: 6 mV typical
Adjustable slice level: ±100 mV
Patented clock recovery architecture
Loss of signal (LOS) detect range: 3 mV to 15 mV
Independent slice level adjust and LOS detector
No reference clock required
Loss of lock indicator
I2 C™ interface to access optional features
Single-supply operation: 3.3 V
Low power: 750 mW typical
5 mm × 5 mm 32-lead LFCSP





Application

SONET OC-1/3/12/48 and all associated FEC rates
Fibre Channel, 2× Fibre Channel , GbE, HDTV, etc.
WDM transponders
Regenerators/repeaters
Test equipment
Broadband cross-connects and routers





Pinout

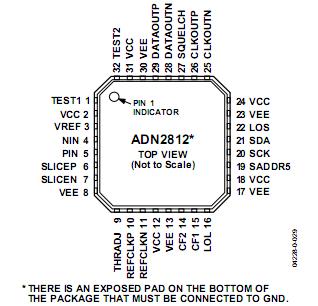

  Connection Diagram

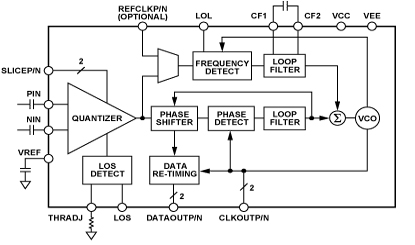

ADN2812 Diagram




Specifications

Parameter Rating
Supply Voltage (VCC)4.2 V
Minimum Input Voltage (All Inputs) VEE − 0.4 V
Maximum Input Voltage (All Inputs) VCC + 0.4 V
Maximum Junction Temperature 125°C
Storage Temperature −65°C to +150°C
Lead Temperature (Soldering 10 s) 300°C


Data Rate (Gb/s) 2.7Gbps
Voltage Supply (V) +3.3V
Power Dissipation (mW) 750mW
Package 5x5 mm LFCSP
Jitter Tolerance (Ulpp) 1.0 @ 1 MHz
Jitter Gen (mUI rms) 1
Input Sensitivity (mVp-p) 6mV p-p
Rate Continuous
Reference Clk Optional
Data Rate Readback X





Description

The ADN2812 provides the receiver functions of quantization,signal level detect, and clock and data recovery for continuousdata rates from 12.3 Mb/s to 2.7 Gb/s. The ADN2812 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance. All specifications are quoted for −40°C to +85°C ambient temperature, unless otherwise noted.

This device, together with a PIN diode and a TIA preamplifier, can implement a highly integrated, low cost, low power fiber optic receiver. The receiver front end loss of signal (LOS) detector circuit indicates when the input signal level has fallen below a user-adjustable threshold. The LOS detect circuit has hysteresis to prevent chatter at the output. The ADN2812 is available in a compact 5 mm × 5 mm 32-lead chip scale package.
