Product Details

Description



Features:

Up to 11.3 Gbps operation
−40°C to +100°C operation
Very low power: ISUPPLY = 65 mA
Typical 26 ps rise/fall times
Full back-termination of output transmission lines
Crosspoint adjust function
PECL-/CML-compatible data inputs
Bias current range: 2 mA to 25 mA
Differential modulation current range: 2.2 mA to 23 mA
Automatic laser shutdown (ALS)
3.3 V operation
Compact 3 mm * 3 mm LFCSP package
Voltage-input control for bias and modulation currents
XFP-compliant bias current monitor





Application

10 Gb Ethernet optical transceivers
10G-BASE-LRM optical transceivers
8× and 10× fiber channel optical transceivers
XFP/X2/XENPAK/MSA 300 optical modules
SONET OC-192/SDH STM-64 optical transceivers





Pinout

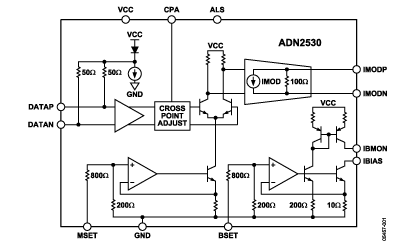

ADN2530 Diagram

  Connection Diagram




Specifications

Data Rate (Gbps) 11.3
Voltage Supply (V) 3.3V
Single Ended/Differential Differential
Package 3x3 mm LFCSP
Modulation Current (mA) 23mA
Laser Bias Current (mA) 25mA
Rise/Fall Time (ps) 26ps


Parameter Rating
Supply Voltage-VCC to GND
IMODP, IMODN to GND
DATAP, DATAN to GND
All Other Pins
Junction Temperature
Storage Temperature Range
Soldering Temperature
(Less than 10 sec)
−0.3 V to +4.2 V
VCC − 1.5 V to +4.5 V
VCC − 1.8 V to VCC − 0.4 V
−0.3 V to VCC + 0.3 V
150°C
−65°C to +150°C
260°C





Description

The ADN2530 laser diode driver is designed for direct modula-tion of packaged VCSELs with a differential resistance ranging from 35 to 140 . The active back-termination technique provides excellent matching with the output transmission lines while reducing the power dissipation in the output stage. The back-termination in the ADN2530 absorbs signal reflections from the TOSA end of the output transmission lines, enabling excellent optical eye quality to be achieved even when the TOSA end of the output transmission lines is significantly misterminated. The small package provides the optimum solution for compact modules where laser diodes are packaged in low pin count optical subassemblies.

The modulation and bias currents of ADN2530 are programmable via the MSET and BSET control pins. By driving these pins with control voltages, the user has the flexibility to implement various average power and extinction ratio control schemes, including closed-loop control and look-up tables. The eye crosspoint in the output eye diagram is adjustable via the crosspoint adjust (CPA) control voltage input. The automatic laser shutdown feature allows the user to turn on/off the bias and modulation currents by driving the ALS pin with the proper logic levels. ADN2530 is available in a space-saving 3 mm * 3 mm LFCSP package specified from −40°C to +100°C.
