Features: Up to 10.7 Gbps operation Very low power: 670 mW (IBIAS = 40 mA, IMOD = 40 mA) Typical 24 ps rise/fall times Full back-termination of output transmission lines Drives TOSAs with resistances ranging from 5 Ω to 50 Ω PECL-/CML-compatible data inputs Bias current range: 10 mA to...

product image

ADN2525 Picture
SeekIC No. : 004276166 Detail

ADN2525: Features: Up to 10.7 Gbps operation Very low power: 670 mW (IBIAS = 40 mA, IMOD = 40 mA) Typical 24 ps rise/fall times Full back-termination of output transmission lines Drives TOSAs with resistance...

floor Price/Ceiling Price

Part Number:
ADN2525
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/8

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Up to 10.7 Gbps operation
Very low power: 670 mW (IBIAS = 40 mA, IMOD = 40 mA)
Typical 24 ps rise/fall times
Full back-termination of output transmission lines
Drives TOSAs with resistances ranging from 5 Ω to 50 Ω
PECL-/CML-compatible data inputs
Bias current range: 10 mA to 100 mA
Differential modulation current range: 10 mA to 80 mA
Automatic laser shutdown (ALS)
3.3 V operation
Compact 3 mm × 3 mm LFCSP package
Voltage input control for bias and modulation currents
XFP-compliant bias current monitor
Optical evaluation board available





Application

SONET OC-192 optical transceivers
SDH STM-64 optical transceivers
10 Gb Ethernet optical transceivers
XFP/X2/XENPAK/XPAK/MSA 300 optical modules
SR and VSR optical links





Pinout

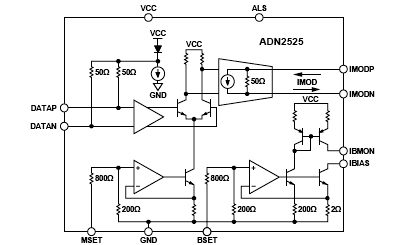

ADN2525 Diagram

  Connection Diagram




Specifications

Data Rate (Gbps) 10.7
Voltage Supply (V) 3.3V
Single Ended/Differential Differential
Package 3x3 mm LFCSP
Modulation Current (mA) 80mA
Laser Bias Current (mA) 100mA
Rise/Fall Time (ps) 24ps
MSA Compliance XFP, Xenpak, X2, MSA-300


ParameterMin Max Unit
Supply Voltage, VCC to GND −0.3 +4.2 V
IMODP, IMODN to GND VCC− 1 .5 4.75 V
DATAP, DATAN to GNDVCC − 1.8VCC − 0.4 V
All Other Pins −0.3 VCC + 0.3V
Junction Temperature 150 °C
Storage Temperature −65 +150°C
Soldering Temperature 240°C
(Less than 10 sec)





Description

The ADN2525 laser diode driver is designed for direct modulation of packaged laser diodes having a differential resistanceranging from 5 Ω to 50 Ω. The active back-termination techniqueprovides excellent matching with the output transmission lineswhile reducing the power dissipation in the output stage. The back-termination in the ADN2525 absorbs signal reflections from the TOSA end of the output transmission lines, enabling excellent optical eye quality to be achieved even when the TOSA end of the output transmission lines is significantly misterminated. The small package provides the optimum solution for compact modules where laser diodes are packaged in low pin-count optical subassemblies.

The modulation and bias currents of ADN2525 are programmable via the MSET and BSET control pins. By driving these pins with control voltages, the user has the flexibility to implement various average power and extinction ratio control schemes, including closed-loop control and look-up tables. The automatic laser shutdown feature allows the user to turn on/off the bias and modulation currents by driving the ALS pin with the proper logic levels. ADN2525 is available in a space-saving 3 mm × 3 mm LFCSP package specified from −40°C to +85°C.
