ADMCF340

Features: 20 MHz Fixed-Point DSP CoreSingle Cycle Instruction Execution (50 ns)ADSP-21xx Family Code CompatibilityIndependent Computational UnitsALUMultiplier/AccumulatorBarrel ShifterMultifunction InstructionsSingle Cycle Context SwitchPowerful Program SequencerZero Overhead LoopingConditional In...

product image

ADMCF340 Picture
See larger image
SeekIC No. : 004276150 Detail

ADMCF340: Features: 20 MHz Fixed-Point DSP CoreSingle Cycle Instruction Execution (50 ns)ADSP-21xx Family Code CompatibilityIndependent Computational UnitsALUMultiplier/AccumulatorBarrel ShifterMultifunction ...

ADMCF340 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADMCF340
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

20 MHz Fixed-Point DSP Core
Single Cycle Instruction Execution (50 ns)
ADSP-21xx Family Code Compatibility
Independent Computational Units
ALU
Multiplier/Accumulator
Barrel Shifter
Multifunction Instructions
Single Cycle Context Switch
Powerful Program Sequencer
Zero Overhead Looping
Conditional Instruction Execution
Two Independent Data Address Generators

Memory Configuration
512  16-Bit Data Memory RAM
512  24-Bit Program Memory RAM
4K  24-Bit Program Memory ROM
4K  24-Bit Total Program FLASH Memory
Three Independent FLASH Memory Sectors
3584  24-Bit, 256  24-Bit, 256  24-Bit
Low Cost Pin-Compatible ROM Option
16-Bit Watchdog Timer
Programmable 16-Bit Internal Timer with Prescaler
Two Double Buffered Serial Ports with SPI Mode
Support
Integrated Power On Reset Function
Three Phase 16-Bit PWM Generation Unit
16-Bit Center-Based PWM Generator
Programmable PWM Pulsewidth
Edge Resolution of 50 ns
Programmable Narrow Pulse Deletion
153 Hz Minimum Switching Frequency
Double/Single Update Mode Control
Individual Enable and Disable for Each PWM
Output
High Frequency Chopping Mode for
Transformer-Coupled Gate Drives




Application

Refrigerator and Air Conditioner Compressors,
Washing Machines
Industrial Variable Speed Drives, HVAC


Pinout

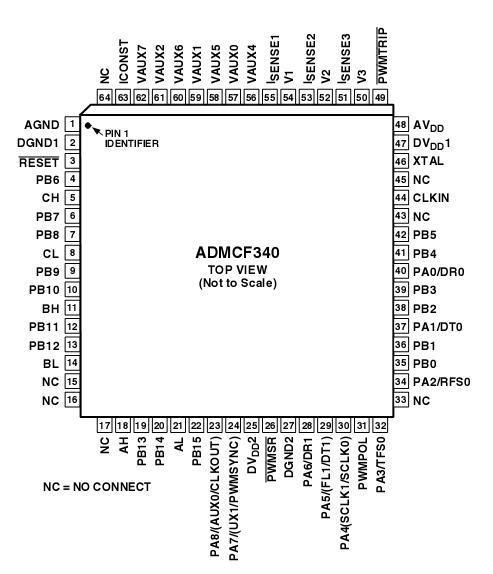

Connection Diagram


Specifications

Supply Voltage (VDD) . . . . . . . . . . . . . . . . . . . .. 0.3 V to +7.0 V
Supply Voltage (AVDD) . . . . . . . . . . . . . . . . .. ..  0.3 V to +7.0 V
Input Voltage . . . . . . . . . . . . . . . . . . . .. ..  0.3 V to VDD + 0.3 V
Output Voltage Swing  . . . . . . . . . . . . .. .. .0.3 V to VDD + 0.3 V
Operating Temperature Range (Ambient)  . . .  40°C to +85°C
Storage Temperature Range  . . . . . . . . . . . .  65°C to +150°C
Lead Temperature (5 sec)  . . . . . . . . . . . . . . . . . . . . . . . . .280°C
