Features: 25 MIPS Fixed-Point DSP Core
Single Cycle Instruction Execution (40 ns)
ADSP-2100 Family Code Compatible
Independent Computational Units ALU
Multiplier/Accumulator
Barrel Shifter
Multifunction Instructions
Single Cycle Context Switch
Powerful Program Sequencer
Zero Overhead Looping
Conditional Instruction Execution
Two Independent Data Address Generators
Memory Configuration
4K X 24-Bit Program Memory RAM
2K X 24-Bit Program Memory ROM
1K X 16-Bit Data Memory RAM
High-Resolution Multichannel ADC System
Five Independent 16-Bit Sigma-Delta ADCs
76 dB SNR Typical (ENOB > 12 Bits)
Arranged in Two Independently Clocked Banks
Differential or Single-Ended Inputs
Programmable Sample Frequency to 32.5 kHz
Flexible Synchronization of ADC and PWM Subsystems
Independent Offset Calibration for Each Channel
Two Dedicated ADC Interrupts
Internal 2.5 V Reference
Three Multiplexer Control Pins for External Expansion
Hardware or Software Convert Start
Individual Power-Down for Each Bank
Three-Phase PWM Generation Subsystem
16-Bit Dedicated PWM Generator
Edge Resolution to 40 ns
Programmable Dead Time
Programmable Minimum Pulsewidth
Double Update Mode Allows Duty Cycle
Adjustment on Half Cycle Boundaries
Special Features for Brushless DC Motors
Hardwired Polarity Control
External Dedicated Asynchronous Shutdown Pin (PWMTRIP)
Additional Shutdown Pins in I/O System
Individual Enable/Disable of Each Output
High Frequency Chopping Mode
Transparent Transition to Overmodulation
Range with Duty Cycles of 100%

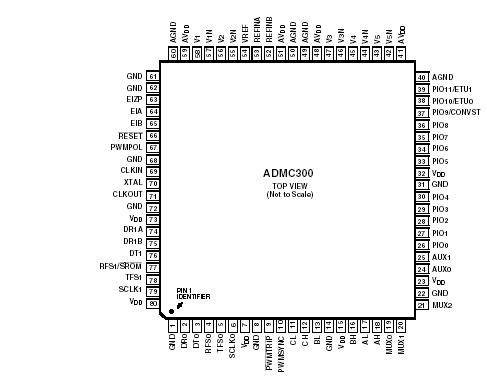

Programmable Interrupt Controller Manages Priority and Masking of 11 Peripheral InterruptsApplicationIndustrial Drives, Servo Drives, Variable Speed Drives, Electric VehiclesPinout
SpecificationsSupply Voltage (VDD) . . . . . . . . . . . . . . . . . 0.3 V to +7.0 V
Supply Voltage (AVDD) . . . . . . . . . . . . . . . . .0.3 V to +7.0 V
Input Voltage . . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Output Voltage Swing . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Operating Temperature Range (Ambient) . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Lead Temperature (5 sec) . . . . . . . . . . . . . . . . . . . . .+280°CDescriptionThe ADMC300 is a single-chip DSP-based controller, suitable for high performance control of ac induction motors, permanent magnet synchronous motors and brushless dc motors. The product integrates a 25 MIPS, fixed-point DSP core with a complete set of motor control peripherals that permits fast, efficient development of servo motor controllers.
The DSP core of the ADMC300 is the ADSP-2171, which is completely code compatible with the ADSP-2100 DSP family and combines three computational units, data address generators and a program sequencer. The computational units comprise an ALU, a multiplier/accumulator (MAC) and a barrel shifter. The ADSP-2171 adds new instructions for bit manipulation, multiplication (X squared), biased rounding and global interrupt masking. In addition, two flexible, double-buffered, bidirectional, synchronous serial ports are included in the ADMC300.
The ADMC300 provides 4K × 24-bit program memory RAM, 2K × 24-bit program memory ROM and 1K × 16-bit data memory RAM. The program and data memory RAM can be boot loaded through the serial port from either a serial SROM/ E2PROM, asynchronous (UART) connection, or synchronous connection. The program memory ROM includes a monitor that adds software debugging features through the serial port. In addition, a number of pre-programmed mathematical and motor control functions are included in the program memory ROM.
The motor control peripherals of the ADMC300 comprise a high performance, five channel ADC system that uses sigmadelta conversion technology offering a typical signal-to-noise ratio (SNR) of 76 dB, equivalent to 12 bits. In addition, a 16-bit center-based PWM generation unit can be used to produce high accuracy PWM signals with minimal processor overhead. The ADMC300 also contains a flexible encoder interface unit for position sensor feedback, two auxiliary PWM outputs, twelve lines of digital I/O, a two-channel event capture system, a 16-bit watchdog timer, a 16-bit interval timer and a programmable interrupt controller that manages all peripheral interrupts.
ADMC300 Data Sheet
