ADM809

Features: Specified over TemperatureLow Power Consumption (17 A)Precision Voltage Monitor: 2.5 V, 3 V, 3.3 V, 5 V OptionsReset Assertion Down to 1 V VCC140 ms Min Power-On ResetOpen-Drain RESET Output (ADM803)Push-Pull RESET Output (ADM809)Push-Pull RESET Output (ADM810)SC70 and SOT-23 PackagesAp...

product image

ADM809 Picture
See larger image
SeekIC No. : 004276007 Detail

ADM809: Features: Specified over TemperatureLow Power Consumption (17 A)Precision Voltage Monitor: 2.5 V, 3 V, 3.3 V, 5 V OptionsReset Assertion Down to 1 V VCC140 ms Min Power-On ResetOpen-Drain RESET Out...

ADM809 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM809
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Specified over Temperature
Low Power Consumption (17 A)
Precision Voltage Monitor: 2.5 V, 3 V, 3.3 V, 5 V Options
Reset Assertion Down to 1 V VCC
140 ms Min Power-On Reset
Open-Drain RESET Output (ADM803)
Push-Pull RESET Output (ADM809)
Push-Pull RESET Output (ADM810)
SC70 and SOT-23 Packages




Application

Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Automotive Systems




Pinout

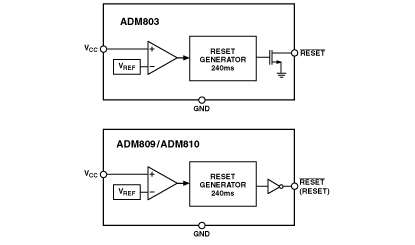

Connection Diagram

ADM809 Diagram




Specifications

(TA = 25°C, unless otherwise noted.)
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
RESET, RESET . . . . . . . . . . . . . . . . . . 0.3 V to VCC + 0.5 V
Input Current
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Output Current
RESET, RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 mA
Rate of Rise, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 V/µs
JA Thermal Impedance, SC70 . . . . . . . . . . . . . . . . . 146°C/W
JA Thermal Impedance, SOT-23 . . . . . . . . . . . . . . . 270°C/W
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . . . 300°C
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C

# of Monitored Voltages 1
Backup-Battery Switch No
Manual Reset Capability No
Package SC70,SOT
Reset Threshold Summary 7 Options--2.32 to 4.63V
Reset Output-Stage Active-Low/Push-Pull
Min Reset Timeout (ms) 140
Watchdog Timer No





Description

The ADM803/ADM809/ADM810 supervisory circuits monitor the power supply voltage in microprocessor systems. ADM803/ADM809/ADM810 provides a reset output during power-up, power-down, and brownout conditions. On power-up, an internal timer holds reset asserted for 240 ms. This holds the microprocessor in a reset state until conditions have stabilized. The RESET output remains operational with VCC as low as 1 V. The ADM803 and ADM809 provide an active low reset signal (RESET), while the ADM81 prvides an active high signal (RESET) output. The ADM803/ADM809/ADM810  have push-pull outputs whereas the ADM803 has an pen-drain output, which requires an external pull-up resistor.

Seven reset threshold voltage options are available, suitable for onitoring a variety of supply voltages. Refer to Table I.

The reset comparator features built-in glitch immunity, making t immune to fast transients on VCC.

The ADM803/ADM809/ADM810 consume only 17 µA, making it suitable for low power portable equipment. The ADM803 isavailable in a 3-lead SC70; the ADM809/ADM810 is availablein 3-lead SOT-23 and SC70 packages.
