ADM7001

Features: • IEEE 802.3 compatible 10BASE-T and 100BASE-T physical layer interface and ANSI X3.263 TP-PMD compatible transceiver• Single chip, integrated physical layer and transceivers for 10BASE-T and 100BASE-TX function.• Medium Independent Interface (MII), Reduced MII (RMII) a...

product image

ADM7001 Picture
See larger image
SeekIC No. : 004275972 Detail

ADM7001: Features: • IEEE 802.3 compatible 10BASE-T and 100BASE-T physical layer interface and ANSI X3.263 TP-PMD compatible transceiver• Single chip, integrated physical layer and transceivers f...

ADM7001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM7001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• IEEE 802.3 compatible 10BASE-T and 100BASE-T physical layer interface and ANSI X3.263 TP-PMD compatible transceiver
• Single chip, integrated physical layer and transceivers for 10BASE-T and 100BASE-TX function.
• Medium Independent Interface (MII), Reduced MII (RMII) and General Purpose Serial Interface (GPSI) for high port count switch
• Built-in 10Mbit transmit filter
• 10Mbit PLL, exceeding tolerances for both preamble and data jitter
• 100Mbit PLL, combined with the digital adaptive equalizer and performance up to 120 meters for UTP 5.
• 125MHz Clock Generator and Timing Recovery
• Integrated Base Line Wander Correction
• Carrier Integrity Monitor function supported
• Support FEFI when Auto Negotiation disabled
• Support Auto MDIX function for Plug-and-Play


Pinout

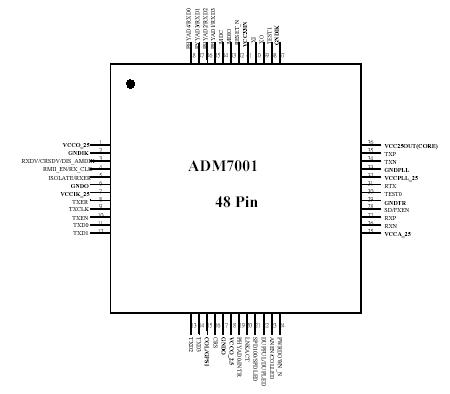

Connection Diagram


Specifications

Symbol Parameter Rating Units
VCC33 3.3V Power Supply 3.0 to 3.6 V
VCC25 2.5V Power Supply 2.25 to 2.75 V
VIN Input Voltage -0.3 to VCC33 + 0.3 V
Vout Output Voltage -0.25 to Vcc25 + 0.25 V
TSTG Storage Temperature -55 to 155 °C
ESD ESD Rating 2000 V
PC Power Consumption 0.5 W



Description

ADM7001 integrates 100Base-X physical sub layer (PHY), 100Base-TX physical medium dependent (PMD) transceivers, and complete 10Base-T modules into a single chip for both 10 Mbps and 100 Mbps Ethernet operations. It also supports 100Base-FX operation through external fiber-optic transceivers. The ADM7001 is capable of operating in either full-duplex mode or half-duplex mode in either 10 Mbps or 100 Mbps operation. Operational modes can be selected by hardware configuration pins, software settings of management registers, or determined by the on-chip auto negotiation logic.

The 10Base-T section of the ADM7001 consists of the 10 Mbps transceiver module with filters and a Manchester ENDEC module.
