ADM1063

Features: Complete supervisory and sequencing solution for up to 10 supplies 10 supply fault detectors enable supervision of supplies to better than 1% accuracy 5 selectable input attenuators allow supervision of supplies up to14.4 V on VH6 V on VP1 to VP4 5 dual-function inputs, VX1 to VX5High i...

product image

ADM1063 Picture
See larger image
SeekIC No. : 004275537 Detail

ADM1063: Features: Complete supervisory and sequencing solution for up to 10 supplies 10 supply fault detectors enable supervision of supplies to better than 1% accuracy 5 selectable input attenuators allow...

ADM1063 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADM1063
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Complete supervisory and sequencing solution for up to 10 supplies
10 supply fault detectors enable supervision of supplies to better than 1% accuracy
5 selectable input attenuators allow supervision of supplies up to
14.4 V on VH
6 V on VP1 to VP4
5 dual-function inputs, VX1 to VX5
High impedance input to supply fault detector with thresholds between 0.573 V and 1.375 V
General-purpose logic input
10 programmable output drivers, PDO1 to PDO10
Open collector with external pull-up
Push/pull output, driven to VDDCAP or VPn
Open collector with weak pull-up to VDDCAP or VPn
Internally charge-pumped high drive for use with external
N-FET (PDO1 to PDO6 only)
Sequencing engine (SE) implements state machine control of PDO outputs
State changes conditional on input events
Enables complex control of boards
Power-up and power-down sequence control
Fault event handling
Interrupt generation on warnings
Watchdog function can be integrated in SE
Program software control of sequencing through SMBus
Complete voltage margining solution for 6 voltage rails 6 voltage output, 8-bit DACs (0.300 V to 1.551 V) allow voltage
adjustment via dc-to-dc converter trim/feedback node
12-bit ADC for readback of all supervised voltages
1 internal and 2 external temperature sensors
Reference input, REFIN, has 2 input options
Driven directly from 2.048 V (±0.25%) REFOUT pin
More accurate external reference for improved ADC performance
Device powered by the highest of VP1 to VP4, VH for improved redundancy
User EEPROM: 256 bytes
Industry-standard, 2-wire bus interface (SMBus)
Guaranteed PDO low with VH, VPn = 1.2 V
40-lead, 6 mm * 6 mm LFCSP and 48-lead, 7 mm * 7 mm TQFP packages




Application

Central office systems
Servers/routers
Multivoltage system line cards
DSP/FPGA supply sequencing
In-circuit testing of margined supplies




Pinout

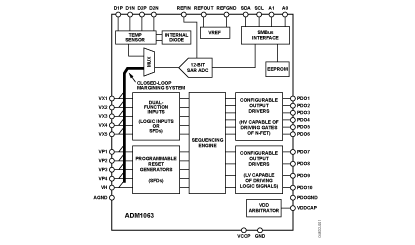

Connection Diagram

ADM1063 Diagram




Specifications

Parameter Rating
Voltage on VH Pin
Voltage on VP Pins
Voltage on VX Pins
Voltage on AUX1, AUX2, REFIN Pins
Input Current at Any Pin
Package Input Current
Maximum Junction Temperature (TJ max)
Storage Temperature Range
Lead Temperature, Soldering
Vapor Phase, 60 sec
ESD Rating, All Pins		 16 V
7 V
−0.3 V to +6.5 V
−0.3 V to +5 V
±5 mA
±20 mA
150°C
−65°C to +150°C

215°C
2000 V


# Supplies Monitored 10:Cascadeable
# Output Drivers 10
Programming Method SMBus
Package 40 ld LFCSP ,48 ld TQFP
Voltage Readback 12-bit ADC
Volt Monitoring Accuracy 1%
Temp Sensor 1 Internal,2 External
FET Drive/Enable Output Both





Description

The ADM1063 is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems. In addition to these functions, the ADM1063 integrates a 12-bit ADC and six 8-bit voltage output DACs. These circuits can be used to implement a closed-loop margining system, which enables supply adjustment by altering either the feedback node or reference of a dc-to-dc converter using the DAC outputs.
