ADL5371

Features: ·Output frequency range: 500 MHz to 1500 MHz·Modulation bandwidth: >500 MHz (3 dB)·1 dB output compression: 14.4 dBm @ 900 MHz·Noise floor: −158.6 dBm/Hz @ 915 MHz·Sideband suppression: −55 dBc @ 900 MHz·Carrier feedthrough: −50 dBm @ 900 MHz·Single supply: 4.75 V to...

product image

ADL5371 Picture
See larger image
SeekIC No. : 004275443 Detail

ADL5371: Features: ·Output frequency range: 500 MHz to 1500 MHz·Modulation bandwidth: >500 MHz (3 dB)·1 dB output compression: 14.4 dBm @ 900 MHz·Noise floor: −158.6 dBm/Hz @ 915 MHz·Sideband suppre...

ADL5371 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADL5371
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Output frequency range: 500 MHz to 1500 MHz
·Modulation bandwidth: >500 MHz (3 dB)
·1 dB output compression: 14.4 dBm @ 900 MHz
·Noise floor: −158.6 dBm/Hz @ 915 MHz
·Sideband suppression: −55 dBc @ 900 MHz
·Carrier feedthrough: −50 dBm @ 900 MHz
·Single supply: 4.75 V to 5.25 V
·24-lead LFCSP




Application

·Cellular communication systems at 900 MHz
·CDMA2000/GSM
·WiMAX/broadband wireless access systems
·Cable communication equipment
·Satellite modems




Pinout

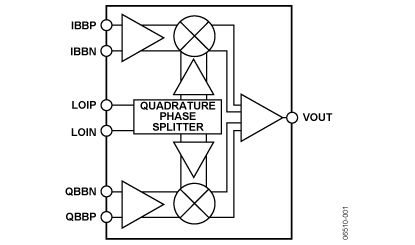

ADL5371 Diagram




Specifications

Supply Voltage VPOS.................5.5 V
IBBP, IBBN, QBBP, QBBN............0 V to 2 V
LOIP and LOIN...................13 dBm
Internal Power Dissipation.......... 1188 mW
JA (Exposed Paddle Soldered Down).... 54°C/W
Maximum Junction Temperature........ 152°C
Operating Temperature Range... −40°C to +85°C
Storage Temperature Range....−65°C to +150°C

Function Mod
RF Freq (MHz) 700 to 1300
IQ Freq (MHz) 700MHz
Noise Floor (dBm/Hz) -156
Voltage Supply (V) 4.75 to 5.5
Supply Current 175mA
Package 24-Lead LFCSP





Description

The ADL5371 is a member of the fixed-gain quadrature modulator (F-MOD) family designed for use from 500 MHz to 1500 MHz. Its excellent phase accuracy and amplitude balance enable high performance intermediate frequency or direct radio frequency modulation for communication systems.

The ADL5371 provides a >500 MHz, 3 dB baseband bandwidth, making it ideally suited for use in broadband zero IF or low IF-to-RF applications and in broadband digital predistortion transmitters.

The ADL5371 accepts two differential baseband inputs and a single-ended local oscillator (LO) and generates a single-ended output.

The ADL5371 is fabricated using the Analog Devices, Inc. advanced silicon-germanium bipolar process. It is available in a 24-lead, exposed-paddle, Pb-free, LFCSP. Performance is specified over a −40°C to +85°C temperature range. A Pb-free evaluation board is available.
