Features:

·Output frequency range: 300 MHz to 1000 MHz
·Modulation bandwidth: >500 MHz (3 dB)
·1 dB output compression: 11 dBm @ 450 MHz
·Noise floor: −160 dBm/Hz
·Sideband suppression: −41 dBc @ 450 MHz
·Carrier feedthrough: −50 dBm @ 450 MHz
·Single supply: 4.75 V to 5.25 V
·24-lead LFCSP_VQ package




Application

·Cellular communication systems at 450 MHz
·CDMA2000/GSM
·WiMAX/broadband wireless access systems
·Cable communication equipment
·Satellite modems




Pinout

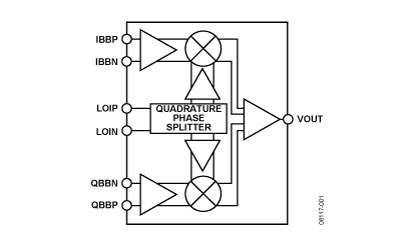

ADL5370 Diagram




Specifications

Function Mod
RF Freq (MHz) 250 to 1300
IQ Freq (MHz) 700MHz
Noise Floor (dBm/Hz) -156
Voltage Supply (V) 4.75 to 5.5
Supply Current 210mA
Package 24-Lead LFCSP


Supply Voltage VPOS................ 5.5 V
IBBP, IBBN, QBBP, QBBN........... 0 V to 2 V
LOIP and LOIN...................13 dBm
Internal Power Dissipation.......... 1375 mW
JA (Exposed Paddle Soldered Down).... 54°C/W
Maximum Junction Temperature.........159°C
Operating Temperature Range... −40°C to +85°C
Storage Temperature Range....−65°C to +150°C




Description

The ADL5370 is the first in the fixed-gain quadrature modulator (F-MOD) family designed for use from 300 MHz to 1000 MHz. Its excellent phase accuracy and amplitude balance enable high performance intermediate frequency or direct radio frequency modulation for communication systems.

The ADL5370 provides a greater than 500 MHz, 3 dB baseband bandwidth, making it ideally suited for use in broadband zero IF or low IF-to-RF applications and in broadband digital predistortion transmitters.

The ADL5370 accepts two differential baseband inputs and a single-ended LO and generates a single-ended 50 output.

The ADL5370 is fabricated using the Analog Devices, Inc. advanced silicon-germanium bipolar process. It is available in a 24-lead, exposed-paddle, Pb-free, LFCSP_VQ package. Perform-ance is specified over a −40°C to +85°C temperature range. A Pb-free evaluation board is available.
