ADG841

Features: Ultralow on resistance 0.28 Ω typical 0.48 Ω max at 125°C Excellent audio performance, ultralow distortion 0.025 Ω typical 0.052 Ω max RON flatness 1.65 V to 3.6 V single supply High current carrying capability 300 mA continuous current 500 mA peak current Automo...

product image

ADG841 Picture
See larger image
SeekIC No. : 004275305 Detail

ADG841: Features: Ultralow on resistance 0.28 Ω typical 0.48 Ω max at 125°C Excellent audio performance, ultralow distortion 0.025 Ω typical 0.052 Ω max RON flatness 1.65 V to 3.6 V...

ADG841 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADG841
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultralow on resistance
   0.28 Ω typical
   0.48 Ω max at 125°C
Excellent audio performance, ultralow distortion
   0.025 Ω typical
   0.052 Ω max RON flatness
1.65 V to 3.6 V single supply
High current carrying capability
   300 mA continuous current
   500 mA peak current
Automotive temperature range: 40°C to +125°C
Rail-to-rail operation
Typical power consumption (<0.01 µW)


Application

Handsets
PDAs
MP3 players
Power routing
Battery-powered systems
Communication systems
Modems
PCMCIA cards


Pinout

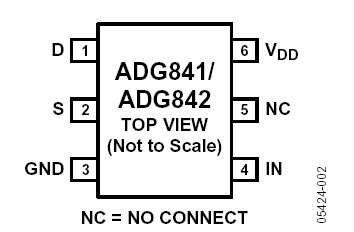

Connection Diagram


Specifications

Parameter Rating
VDD to GND
Analog Inputs1
Digital Inputs1

Peak Current, S or D
3.3 V Operation
2.5 V Operation
1.8 V Operation

Continuous Current, S or D
3.3 V Operation
2.5 V Operation
1.8 V Operation

Operating Temperature Range
    Automotive (Y Version)
Storage Temperature Range
Junction Temperature
SC70 Package
    JA Thermal Impedance
Reflow Soldering (Pb-free)
   Peak Temperature
   Time at Peak Temperature

−0.3 V to +4.6 V
−0.3 V to VDD + 0.3 V
−0.3 V to 4.6 V or 10 mA,
whichever occurs first

500 mA
460 mA
420 mA (pulsed at 1 ms,
10% duty cycle max)

300 mA
275 mA
250 mA

−40°C to +125°C
−65°C to +150°C
150°C

494.8°C/W

260(+0/−5)°C
10 sec to 40 sec




Description

The ADG841/ADG842 are low voltage CMOS devices containing a single-pole, single-throw (SPST) switch. The ADG841/ADG842  are closed for a Logic 1 input and the ADG842 is open for a Logic 1 input. The devices offer ultralow on resistance of less than 0.48 Ω over the full temperature range. The ADG841/ ADG842 are fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation.

Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG841/ADG842 exhibit break-before-make switching action.

The ADG841/ADG842 are available in a 6-lead SC70 package.
